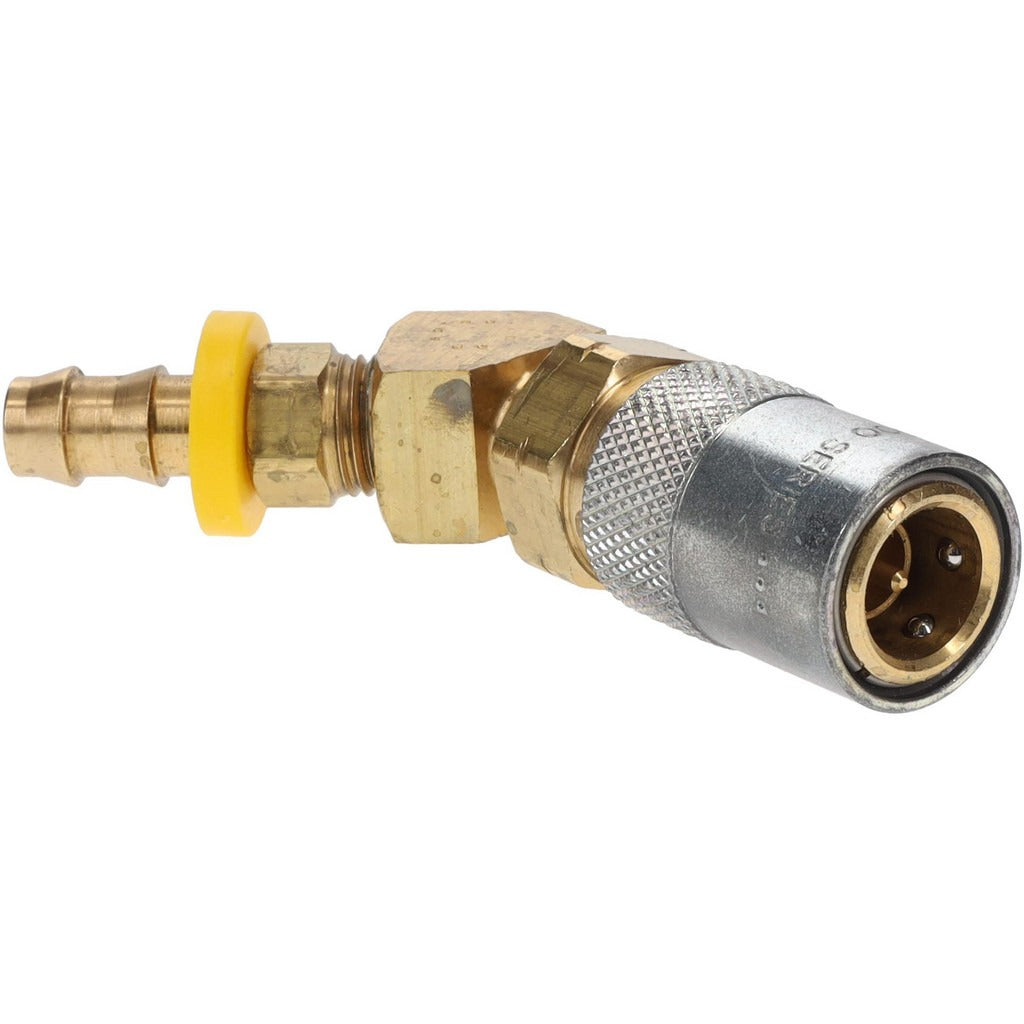

Parker PC326V-BP Push-lok Hose Barb Coupler 200 Psi

Product Description

The PARKER PC326V-BP is a 45-degree Push-Lok hose barb coupler rated for 200 psi, built from brass for reliable performance in hydraulic and fluid-transfer applications. Part of the Moldmate series, this valved coupler features a non-threaded shaft design and accepts 3/8-inch hose. It is engineered for systems where a push-to-connect barb fitting is required at a 45-degree angle, simplifying hose routing in tight or angled plumbing configurations. The valved body allows for controlled flow when connected and shut-off when disconnected, reducing fluid loss during service. At 0.36 pounds, it is compact and easy to handle during installation.

This coupler is suited for use in hydraulic hose assemblies, fluid-power systems, and industrial plumbing lines that require angled hose transitions. The 3/8-inch hose diameter makes it compatible with standard 3/8-inch Push-Lok style hose. Its operating temperature range of -20 degrees F to 400 degrees F supports a wide range of service environments, from cold-weather outdoor applications to high-temperature industrial settings. It is packaged individually and ships in a minimum order quantity of one, making it practical for single-repair or retrofit jobs.

Key Features

• 45-degree barb angle simplifies hose routing in confined or angled installations
• Valved body controls flow and minimizes fluid loss during disconnect
• Brass construction provides corrosion resistance in hydraulic and fluid-transfer service
• Non-threaded Push-Lok shaft design for push-to-connect assembly without threading tools
• Rated to 200 psi with a temperature range of -20 degrees F to 400 degrees F
• Compact form factor at 3.75 inches length and 0.36 pounds

Compatibility

Designed for use with 3/8-inch Push-Lok style hose assemblies in hydraulic and fluid-power systems requiring a 45-degree barbed coupler connection.

Installation Notes

Installation of hydraulic hose fittings should be performed by qualified fluid-power or hydraulic technicians. Depressurize and drain the hydraulic system fully before removing or installing any coupler. Push-Lok barb couplers are assembled by firmly pushing the hose onto the barb until seated — no clamps or threading required for this non-threaded design. Verify the hose inner diameter matches the 3/8-inch barb before assembly, and inspect for proper seating before returning the system to pressure.
