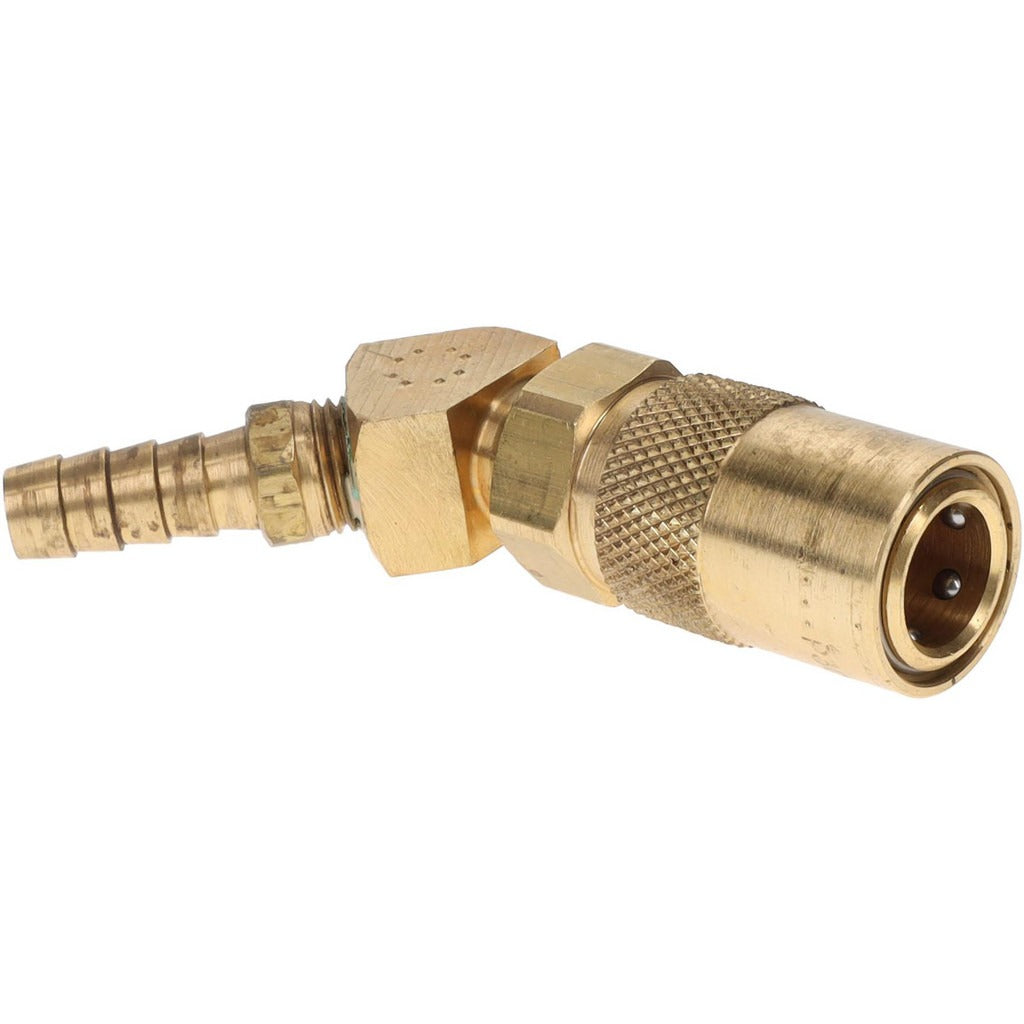

Parker PC326 45 Deg Hose Barb Coupler 200 Psi 3/8 in

Product Description

The PARKER PC326 is a 45-degree hose barb coupler designed for hydraulic and fluid-transfer hose assemblies. Built from brass, this non-valved, non-threaded fitting accepts 3/8-inch hose and operates at a rated pressure of 200 psi. The barbed design creates a secure mechanical grip on the hose without the need for threaded engagement, simplifying assembly in tight spaces. It is rated for temperatures from -20 degrees F to 400 degrees F, making it suitable for a broad range of fluid-handling environments. Licensed plumbers, hydraulic system technicians, and industrial maintenance professionals install this fitting in both stationary and mobile equipment applications.

The PC326 belongs to Parker's Moldmate series and is suited for use in low-to-medium pressure hydraulic lines, pneumatic systems, and general fluid-transfer assemblies. The 45-degree angle allows routing hose around obstructions or transitioning direction without excessive hose bend radius. It is appropriate for residential, commercial, and light industrial installations where brass construction and a non-valved, push-on barb interface meet system requirements.

Key Features

• 45-degree hose barb angle for directional hose routing in confined layouts
• 200 psi pressure rating for low-to-medium pressure fluid systems
• Brass construction offers corrosion resistance in water, oil, and light chemical service
• Non-valved design allows unrestricted flow when connected
• Non-threaded shaft simplifies assembly — no wrench required at the barb end
• Wide operating temperature range: -20 degrees F to 400 degrees F

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 3/8-inch hose barb applications within Parker's Moldmate series hydraulic and fluid-transfer hose assemblies.

Installation Notes

Installation is typically performed by licensed plumbers or hydraulic system technicians. Depressurize and drain the system fully before removing or installing any hose fittings. Ensure the hose inner diameter matches the 3/8-inch barb specification and secure the hose with an appropriate clamp rated for the system pressure. Follow applicable codes and equipment manufacturer guidelines for hose assembly and pressure testing after installation.
