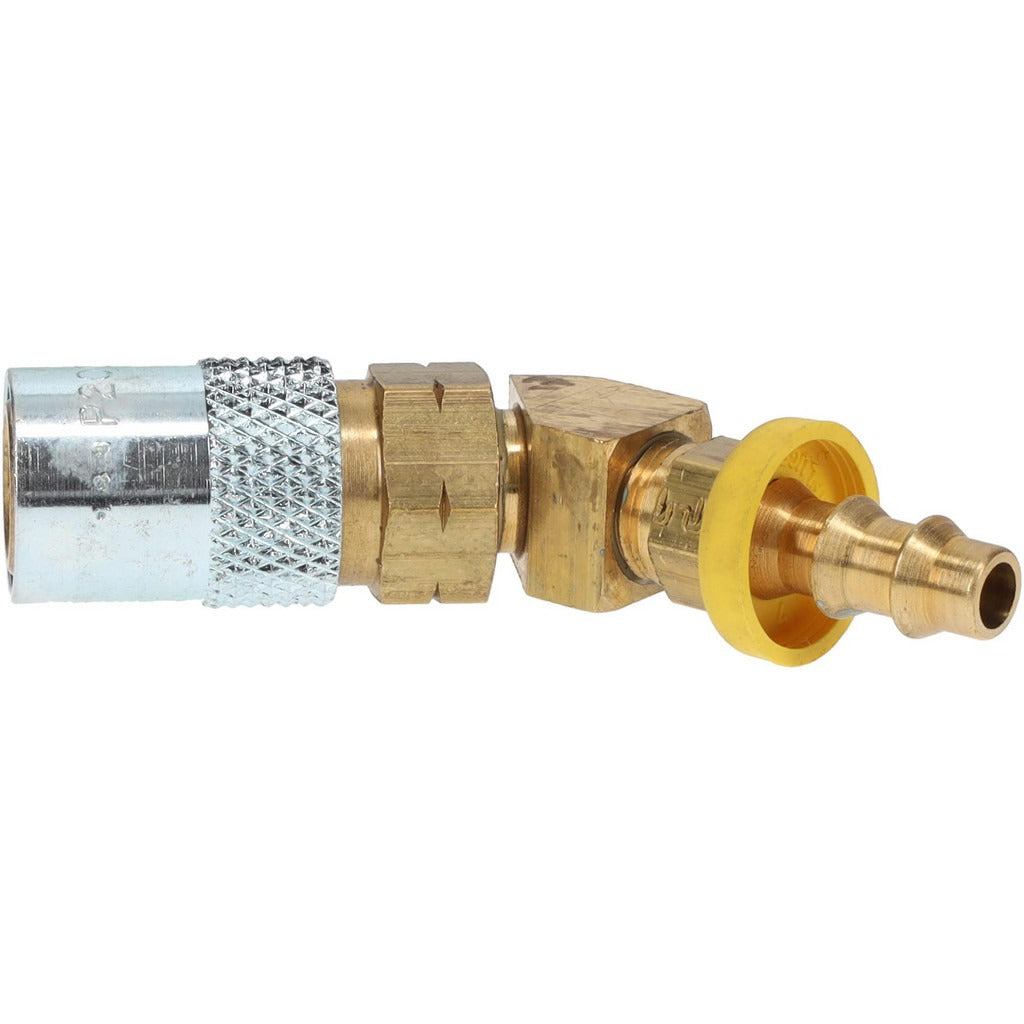

Parker PC224AV-BP 45 Degree Push-lok Hose Barb Coupler

Product Description

The PARKER PC224AV-BP is a 45-degree Push-Lok hose barb coupler designed for low-pressure hydraulic and pneumatic hose assemblies. Built from brass with a valved, non-threaded shaft design, this fitting accepts 1/4-inch hose and is rated to 200 psi. The Moldmate series construction delivers reliable sealing in fluid transfer applications. It weighs 0.14 pounds and measures 2.77 inches in length with a 0.71-inch body diameter. Plumbers, hydraulic technicians, and industrial maintenance professionals install this type of fitting where a quick, tool-free hose connection is required at a 45-degree angle.

This coupler is suited for light-duty hydraulic, pneumatic, and fluid handling systems where hose assemblies require a barbed push-on connection at a 45-degree offset. The valved body design allows the fitting to retain fluid when the hose is disconnected, reducing spillage and maintaining system pressure. Typical installations include shop air lines, low-pressure hydraulic circuits, coolant systems, and general fluid transfer lines in both residential and light commercial settings.

Key Features

• 45-degree Push-Lok hose barb design for angled hose routing without additional adapters
• Valved body retains fluid when hose is removed, minimizing system drainage
• Brass construction provides corrosion resistance in water, air, and light hydraulic fluid service
• Rated to 200 psi for use in low-pressure fluid transfer and pneumatic applications
• Wide operating temperature range of -20 degrees F to 400 degrees F
• Non-threaded shaft simplifies installation — no pipe thread sealant required

Compatibility

Designed for use with 1/4-inch Push-Lok style hose in the PARKER Moldmate series. Fits standard 1/4-inch hose ID barb connections in low-pressure hydraulic and pneumatic assemblies.

Installation Notes

Installation is performed by hydraulic technicians or industrial maintenance professionals. Depressurize and drain the hose assembly completely before disconnecting or replacing any fitting. Push-Lok barb couplers are seated by hand — do not use excessive force or impact tools, as brass fittings can deform under stress. Verify hose ID compatibility before assembly to ensure a proper seal and rated pressure retention.
