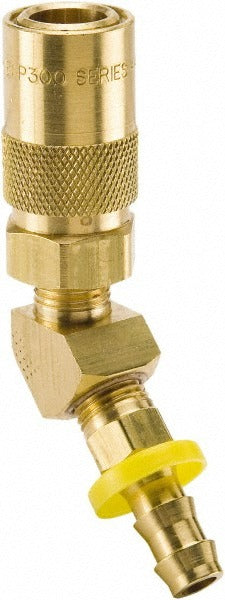

Parker PC224-BP 45 Deg Push-lok Hose Barb Coupler 200 Psi

Product Description

The PARKER PC224-BP is a 45-degree Push-Lok hose barb coupler designed for low-pressure hydraulic and fluid-transfer lines. Part of the Moldmate series, it features a brass, non-valved, non-threaded body with a 1/4-inch hose diameter and 1/4-inch body diameter. The coupler connects directly to compatible Push-Lok hose without tools, creating a secure, leak-resistant joint at pressures up to 200 psi. It operates across a wide temperature range, from -20 degrees F to 400 degrees F. Plumbers, hydraulic technicians, and fluid-system installers use this fitting in applications where a quick, reliable push-on hose termination is required.

The PC224-BP suits residential and light commercial fluid-handling systems where non-threaded, barb-style push-on connections are specified. Its 45-degree angle makes it well suited for routing hose in tight or angled runs where straight fittings would create excess hose stress or bend-radius issues. The Moldmate series is commonly used in pneumatic, hydraulic, and general-purpose fluid lines operating within the fitting rated temperature and pressure limits.

Key Features

• 45-degree Push-Lok hose barb design allows tool-free hose assembly
• Brass construction provides corrosion resistance for fluid and hydraulic service
• Non-valved, non-threaded body simplifies installation in push-on hose systems
• 200 psi pressure rating suitable for low-pressure hydraulic and pneumatic lines
• Wide operating range of -20 degrees F to 400 degrees F
• 1/4-inch hose and body diameter in a compact, lightweight form at 0.13 pounds

Compatibility

Designed as an OEM-style replacement or direct-install fitting for 1/4-inch Push-Lok hose assemblies within the PARKER Moldmate series product family.

Installation Notes

This fitting is installed by hydraulic technicians or plumbers working on fluid-transfer or low-pressure hydraulic lines. Depressurize and drain the system fully before disconnecting or installing any fittings. Push the hose firmly onto the barb until it seats against the fitting body to ensure a secure connection. Follow applicable system codes and the hose manufacturer guidelines for maximum working pressure and bend radius.
