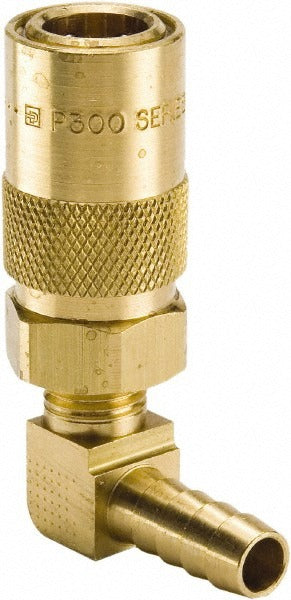

Parker PC216 90 Deg Hose Barb Coupler 0.375 in 200 Psi

Product Description

The PARKER PC216 is a 90-degree hose barb coupler designed for use in fluid handling and cooling applications where a right-angle connection is required. Part of the Parker Moldmate Series, this fitting is constructed from brass and rated for a maximum working pressure of 200 psi across a temperature range of -20 to 400 degrees F. It accepts 3/8-inch hose (0.375 inches ID) and features a 1/4-inch body diameter with a threaded connection type. The non-valved design allows unrestricted flow when connected. This coupler is installed by plumbers, pipefitters, and industrial maintenance technicians working with low-pressure fluid lines.

The PC216 is specifically suited for die casting equipment and mold coolant lines, where a compact 90-degree barb fitting is needed to route coolant hose around corners or through tight spaces. The Moldmate Series is built for the demands of industrial cooling circuits, where reliable sealing and temperature resistance are essential. The brass construction provides corrosion resistance in water-based coolant environments. It is sold individually and is a direct fit for applications requiring a 3/8-inch hose barb with a 1/4-inch coupler body.

Key Features

• 90-degree hose barb orientation for right-angle routing in tight installations
• Brass construction offers corrosion resistance in coolant and water-based fluid systems
• Rated to 200 psi maximum working pressure
• Wide operating temperature range: -20 to 400 degrees F
• Non-valved design allows full unrestricted flow
• Part of the Parker Moldmate Series, designed for die casting and mold coolant applications

Compatibility

Designed for use with die casting equipment and mold coolant lines as part of the Parker Moldmate Series. Accepts 3/8-inch ID hose with a 1/4-inch threaded coupler body connection.

Installation Notes

Installation is typically performed by pipefitters or industrial maintenance technicians. Depressurize and drain the fluid line completely before removing or installing any fitting. Apply appropriate thread sealant to threaded connections per the system manufacturer's recommendations. Ensure hose is fully seated over the barb and secured with an appropriate clamp rated for the system pressure.
