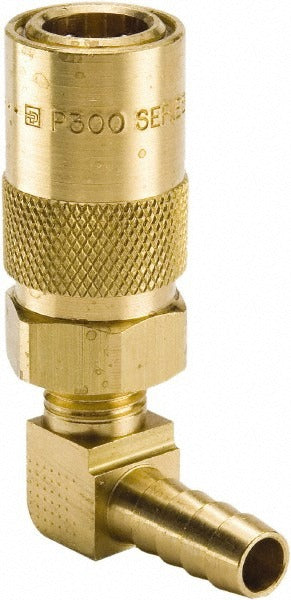

Parker PC214 90 Degree Hose Barb Coupler 200 Psi 1/4 Inch

Product Description

The PARKER PC214 is a 90-degree hose barb coupler designed for hydraulic and fluid transfer applications where a right-angle connection is required. Constructed from brass, this non-valved, non-threaded fitting is part of the Moldmate series and rated for pressures up to 200 psi. It accepts 1/4-inch hose and features a 1/4-inch body diameter, making it a compact, reliable connection point in plumbing and hydraulic circuits. The operating temperature range spans from -20 degrees F to 400 degrees F, giving it solid performance across a wide range of service environments. Plumbers, hydraulic technicians, and fluid-system mechanics install this type of fitting during system assembly or repair.

The PC214 is suited for residential and light commercial fluid transfer systems, hydraulic lines, and pneumatic plumbing where a 90-degree directional change is needed at the hose connection point. The non-valved design means flow is unrestricted through the fitting, which is appropriate in circuits where flow control is handled elsewhere in the system. Its brass construction makes it compatible with water, air, and a broad range of hydraulic fluids. This fitting is typically installed in tight-space routing situations where a straight barb would create excessive bend stress on the hose.

Key Features

• 90-degree hose barb angle for right-angle routing without excessive hose bending
• 200 psi pressure rating for reliable performance in low-to-medium pressure circuits
• Brass construction for corrosion resistance across a wide range of fluids
• Non-valved, non-threaded design for straightforward push-on hose installation
• Wide temperature range from -20 degrees F to 400 degrees F
• Moldmate series with 1/4-inch hose and body diameter for standardized fitment

Compatibility

Designed as an OEM-style replacement or new-install fitting for 1/4-inch hose assemblies requiring a 90-degree barb coupler rated to 200 psi in hydraulic, pneumatic, or general fluid transfer systems.

Installation Notes

Installation is typically performed by a licensed plumber or hydraulic technician. Depressurize and drain the system fully before removing or installing any fittings. Secure the hose onto the barb with an appropriately sized clamp to maintain a leak-free connection at rated pressure. Inspect the hose end for cuts or deformation before assembly to ensure a proper seal.
