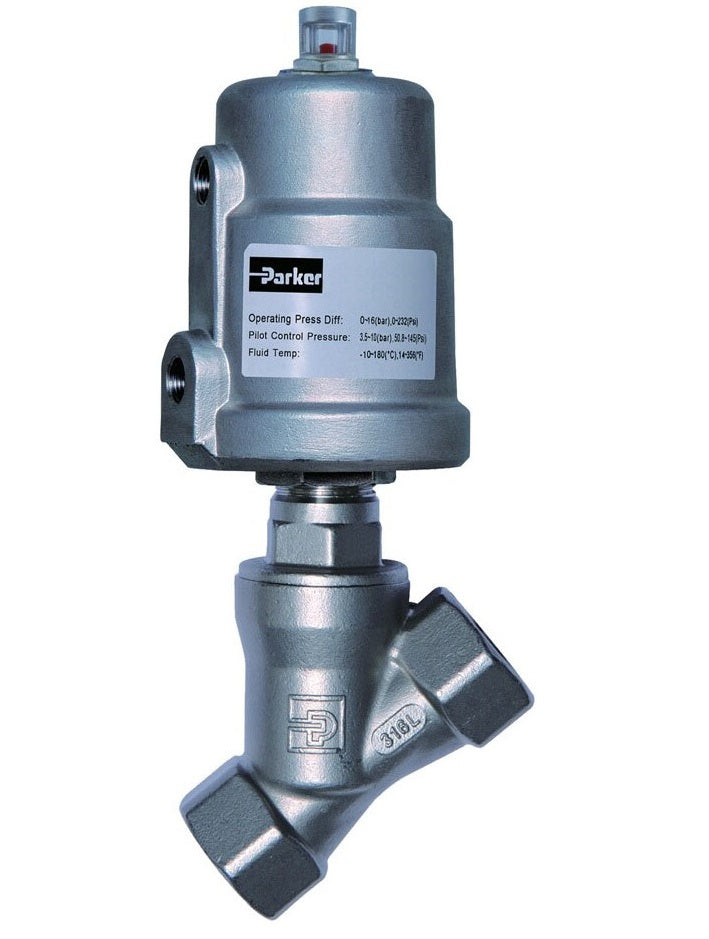

PARKER PA50SAN9S100A Parker PA Series Angle Body Valve

Product Description

The Parker PA50SAN9S100A is a two-way angle body valve designed for fluid control. It features a body made of 304 stainless steel and an aluminum actuator. This valve is suitable for various applications, including air, inert gases, and liquids. It operates pneumatically and has a robust anti-water hammer design.

• 2 NPT ports
• Operates within a pressure range of 0 to 130 PSI
• Requires a minimum pilot pressure of 58 PSI

Product Highlights

This valve is ideal for fluid handling tasks in different environments. Its construction meets the Pressure Equipment Directive, ensuring reliability in operation.

Product Information

Standard Information

• Brand: PARKER
• Product Type: Angle Valve

Technical Specifications

• Ports: 2 NPT
• Flow Coefficient: 58.3 Cv
• Maximum Fluid Temperature: 356 °F
• Seal Material: PTFE
• Configuration: Normally Closed - Under Seat Anti-Waterhammer
• Actuation Type: Air Pilot
• Actuator Size: 100 mm
• Connection Size: 2 inch
