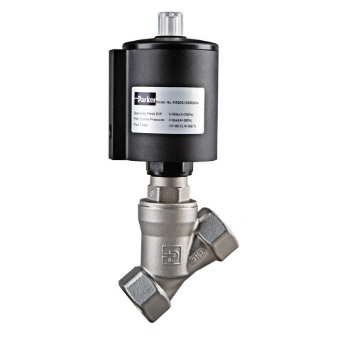

Parker PA32S1N7S063A Angle Body Valve

Product Description

The Parker PA32S1N7S063A is a reliable angle body valve utilized in various applications. This valve operates in a normally closed configuration, suitable for diverse media handling, including air, water, steam, and corrosive fluids. Constructed with a durable 304 stainless steel body paired with an aluminum actuator, this valve offers enhanced performance across multiple environments.

• Features 304 stainless steel body and aluminum actuator.
• Designed for air, inert gases, water, steam, and corrosive fluids.
• Complies with European Pressure Equipment Directive 97/23/EC.

Product Highlights

The valve is equipped with NPT ports and can be installed in any position. A visual position indicator ensures easy monitoring of valve status.

Product Information

Standard Information

• Brand: Parker
• MPN: PA32S1N7S063A

Technical Specifications

• Product Type: Angle Valve
• Configuration: Normally Closed - Over Seat
• Function: 2-Way
• Actuation Type: Air Pilot
• Body Material: 304 Stainless Steel
• Actuator Material: Aluminum
• Seal Material: PTFE
• Connection Type: NPT
• Port Size: 1-1/4 inch
• Flow Coefficient: 28 Cv
• Operating Pressure Air, Inert Gases, PSI: 0-232 PSI
• Operating Pressure Steam, PSI: 0-130 PSI
• Maximum Operating Pressure: 232.0 psi
• Fluid Temperature: 14 - 356 DEG F
• Ambient Temperature: 14°F to 140°F
