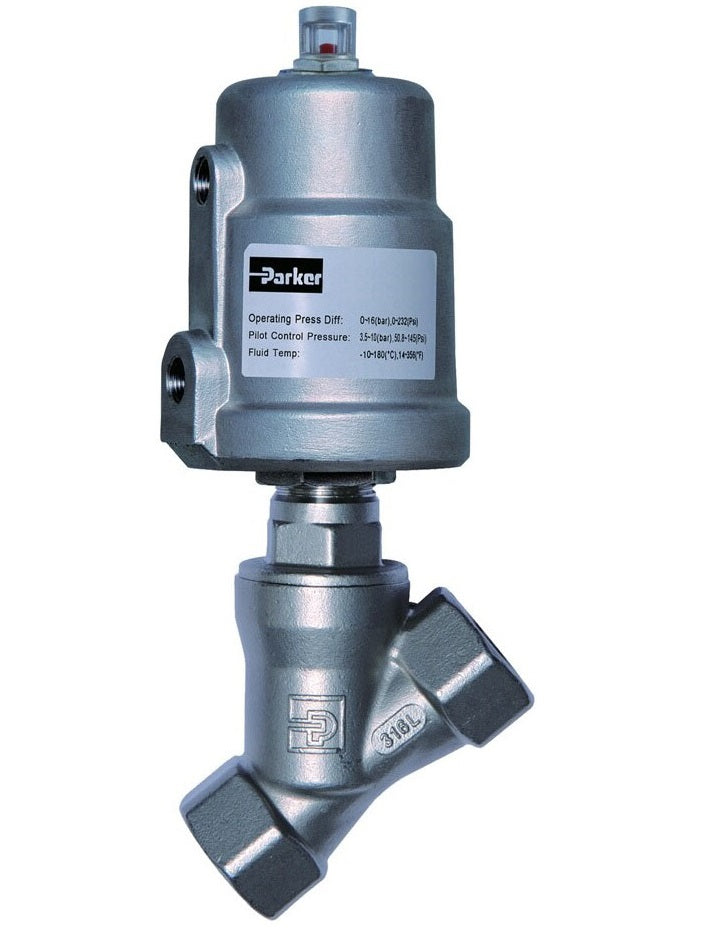

PARKER PA25S3N6S063A Angle Body Valve

Product Description

The PARKER PA25S3N6S063A is a two-way normally open angle body valve. This valve features a body made from 304 stainless steel and an aluminum actuator. It is designed for under-seat flow direction and utilizes NPT ports. The product is suitable for handling air, inert gases, hot water, oils, steam, and some aggressive or corrosive fluids. It is compliant with the European Pressure Equipment Directive.

• Body made from 304 stainless steel.
• 63 mm actuator constructed from aluminum.
• Suitable for a wide range of fluid temperatures from fourteen degrees Fahrenheit to three hundred fifty-six degrees Fahrenheit.

Product Highlights

This angle body valve offers reliable performance for various fluid applications, ensuring effective control over liquid and gas flow.

Product Information

Standard Information

• Brand: Parker
• Manufacturer Part Number: PA25S3N6S063A

Technical Specifications

• Product Type: Angle Valve
• Series/Model: Series PA
• Operation: 2 Way Normally Open
• Flow Direction: Under-Seat
• Body Material: 304 Stainless Steel
• Actuator Construction: Aluminum
• Seal Material: PTFE
• Port Size: 1 inch
• Connection Type: NPT
• Number Of Ports/Ways: 2-Port/2-Way
• Actuator Diameter: 63 mm
• Maximum Working Pressure: 232 PSI
• Operating Pressure - Air, Inert Gases: 0 - 232 PSI
• Operating Pressure - Steam: 0 - 130 PSI
• Pilot Pressure: 44 PSI min to 145 PSI max
• Fluid Temperature: 14°F to 356°F
• Ambient Temperature: 14°F to 140°F
• Viscosity: Maxi. 600 mm²/s
• Flow Coefficient: 18.1 Cv
• Orifice Size: 0.94 inch
• Pilot Control Media: Air, Neutral Gas
• Fluids Handled: Inert gases, hot water, oils, steam, aggressive and corrosive fluids
• Industry Standards: 97/23/EC, 94/9/CE
