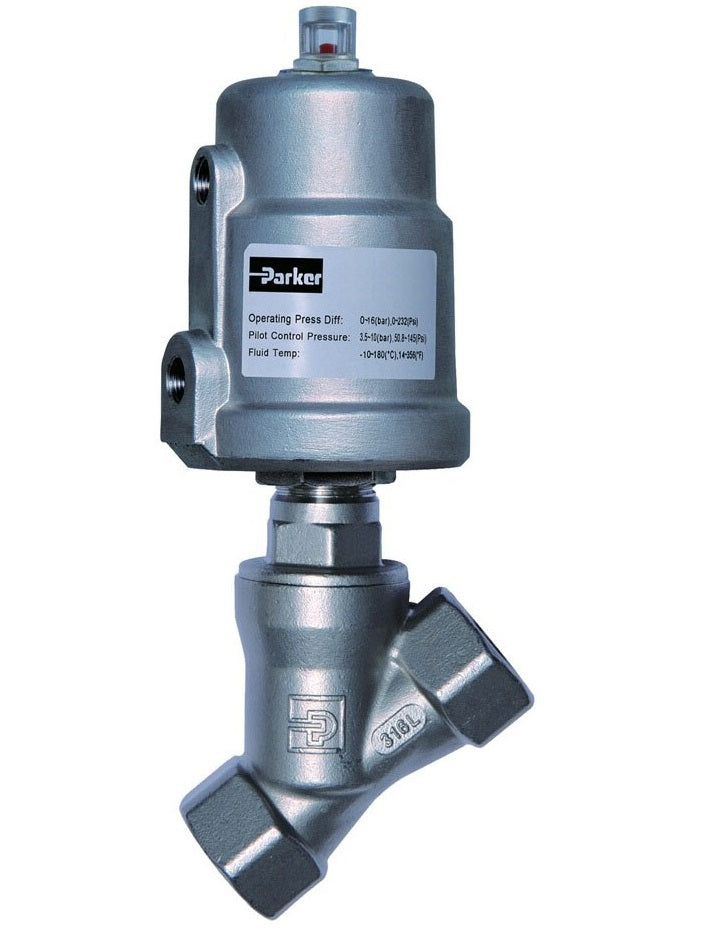

Parker PA20S1N5S050A 2-Way Angle Seat Valve

Product Description

The Parker PA20S1N5S050A is a 2-way angle seat valve designed for normally closed operation. This valve features a durable body made from 304 stainless steel and an aluminum actuator housing. It can handle different media types such as air, inert gases, water, steam, and corrosive solutions.

• Built with PTFE seal material for reliable performance.
• Maximum fluid temperature of three hundred fifty-six degrees Fahrenheit.
• Includes a three-quarter inch NPT connection for easy installation.

Product Highlights

This valve is essential for applications involving steam and offers reliable control over fluid flow.

Product Information

Standard Information

• Type: Angle Valve
• Brand: Parker

Technical Specifications

• MPN: PA20S1N5S050A
• Function: 2-Way
• Configuration: Normally Closed - Over Seat
• Actuation Type: Air Pilot
• Connection Size: 3/4 inch
• Body Material: 304 Stainless Steel
• Seal Material: PTFE
• Orifice Size: 0.71 inches
• Maximum Operating Pressure: 232.0 psi
• Maximum Fluid Temperature: 356 degrees Fahrenheit
• Flow Coefficient: 10.5 Cv
