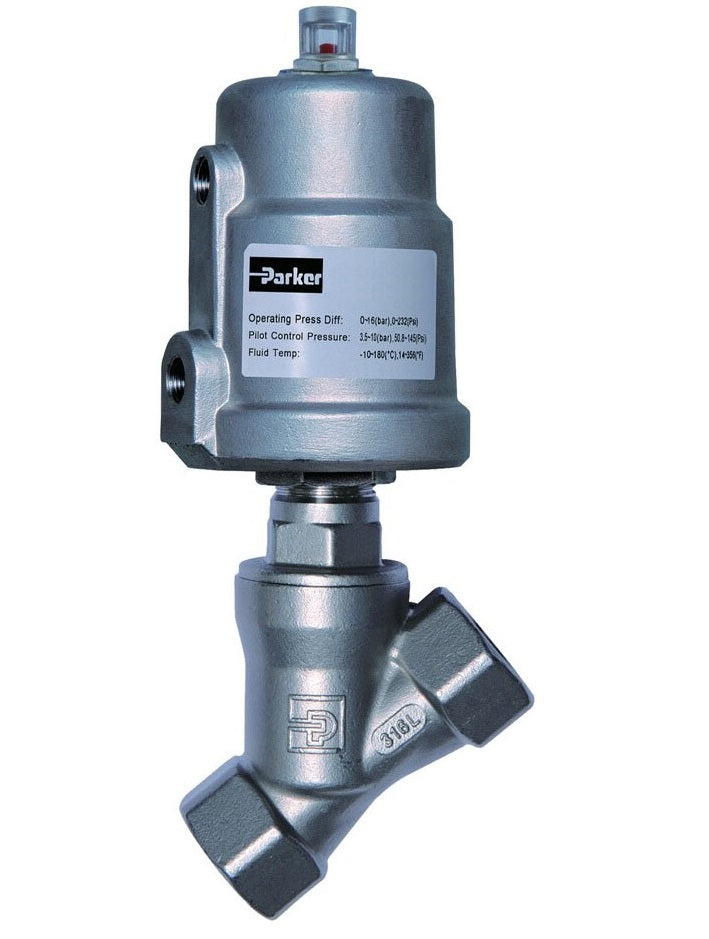

Parker PA15SAN4S050A Parker PA Series Angle Body Valve 2-Way 1/2 NPT

Product Description

The Parker PA Series Angle Body Valve with MPN PA15SAN4S050A is a reliable two-way valve designed for normally closed operation, suitable for controlling air, inert gases, and liquids. This valve features a durable construction with a body made of stainless steel and an aluminum actuator, enhancing its capability to handle various operational pressures and flow conditions.

• 1/2 NPT ports for easy installation.
• Operates effectively within a pressure range of 0-232 PSI.
• Includes a 1/8 BSPT pilot port for precise control.

Product Highlights

This angle valve is compliant with the Pressure Equipment Directive and is designed to prevent water hammer, making it suitable for many applications in fluid control.

Product Information

Standard Information

• Product Line: Parker
• Product Type: Angle Valve

Technical Specifications

• Ports: 1/2 NPT
• Flow Coefficient: 5.5 Cv
• Operating Pressure: 0-232 PSI
• Minimum Pilot Pressure: 65.3 PSI
• Pilot Port: 1/8 BSPT
• Body Material: 304 Stainless Steel
• Actuator Material: Aluminum
• Maximum Fluid Temperature: 356 °F
• Seal Material: PTFE
• Configuration: Normally Closed - Under Seat Anti-Waterhammer
• Actuation Type: Air Pilot
• Specifications Met: 2014/68/EU with Annex II, Category II, Group 2, Module A1
• Maximum Pilot Pressure: 145 PSI
• Minimum Operating Pressure: 0 PSI
• Actuator Size: 50 mm
• Input Supply Voltage: 12 - 48 VDC
• Connection Type: NPT
• Maximum Operating Pressure: 232.0 PSI
• Orifice Size: 0.51 inches
