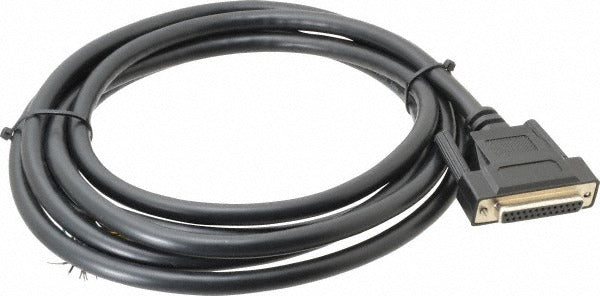

Parker P8LMH25M3A 25 Pin D-sub Solenoid Valve Cable

Product Description

The PARKER P8LMH25M3A is a 25-pin D-Sub solenoid valve cable with a female connector, designed for use in pneumatic and fluid control systems that require multi-channel solenoid valve wiring. This cable accessory provides a reliable electrical interface between a valve manifold and its control system, consolidating multiple solenoid valve connections into a single D-Sub connector. It is installed by automation technicians, pneumatic system integrators, and industrial maintenance electricians working on manifold-mounted solenoid valve assemblies. The female D-Sub configuration mates directly with compatible male connector ports on valve manifold stations.

This cable is intended for use with ISO 15407-2 compliant valve manifolds, specifically HA and HB type configurations. It suits industrial automation environments where solenoid valve manifolds are controlled via PLC or similar multi-output control systems. Typical installations include factory automation panels, process control enclosures, and machine tooling stations where centralized valve wiring is required. The 25-pin format accommodates manifold stations with high solenoid channel counts in a compact connector footprint.

Key Features

• 25-pin D-Sub female connector for multi-channel solenoid valve wiring
• Compatible with ISO 15407-2 HA and HB type valve manifold stations
• Consolidates multiple solenoid connections into a single cable interface
• Designed as a direct accessory replacement for Parker solenoid valve manifold systems

Compatibility

Designed for use with ISO 15407-2 HA and HB type solenoid valve manifold stations requiring a 25-pin D-Sub female cable connection.

Installation Notes

Installation is typically performed by a licensed electrician or qualified automation technician. De-energize and lock out the control panel before disconnecting or connecting valve wiring to prevent unintended solenoid actuation. Ensure the mating male D-Sub connector on the manifold is free of debris and undamaged before seating the cable connector. Follow applicable NEC guidelines for control wiring routing and strain relief.
