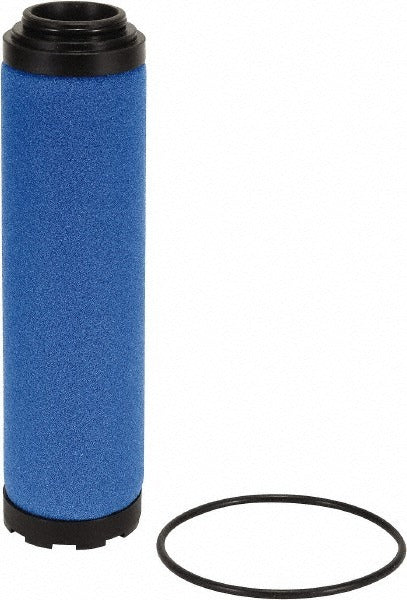

Parker P3YKA00ESC Coalescing Filter Element Kit 0.01 Micron

Product Description

The PARKER P3YKA00ESC is a replacement coalescing filter element kit rated at 0.01 micron, designed to restore filtration performance in Parker P3Y series coalescing filters. Coalescing filter elements remove liquid aerosols, oil mist, and fine particulates from compressed air and gas lines, protecting downstream equipment from contamination. This kit provides the replacement element needed to maintain system cleanliness without replacing the entire filter housing. Installation is straightforward for compressed air system technicians and pipefitters working on industrial or commercial pneumatic systems.

This element kit is used in compressed air and gas filtration systems where high-efficiency liquid aerosol and particulate removal is required. The 0.01 micron rating makes it suitable for applications demanding clean, dry air supply — including instrumentation air lines, spray finishing systems, and precision pneumatic tooling. The kit is packaged as a single unit, appropriate for one service interval on a P3Y housing.

Key Features

• 0.01 micron filtration rating removes fine liquid aerosols and oil mist from compressed air streams
• Replacement element kit format allows filter housing reuse while restoring like-new filtration efficiency
• Designed specifically for use with Parker P3Y series coalescing filter housings
• Compact form factor — 2.5 inches wide by 2.5 inches deep by 3 inches tall
• Single-unit packaging supports individual filter servicing

Compatibility

Designed for use with Parker P3Y series coalescing filters. Verify housing model against Parker documentation before ordering to confirm element kit fitment.

Installation Notes

Replacement of coalescing filter elements should be performed by a qualified pipefitter or compressed air system technician. Depressurize and isolate the filter housing from the compressed air supply before disassembly. Follow the housing manufacturer's service instructions for element removal, seating, and reassembly. Refer to applicable local piping codes for compressed air system maintenance requirements.
