Parker P3YEA98ESCBNJN Frl Combination Unit 1 Npt 465 Scfm

Product Description

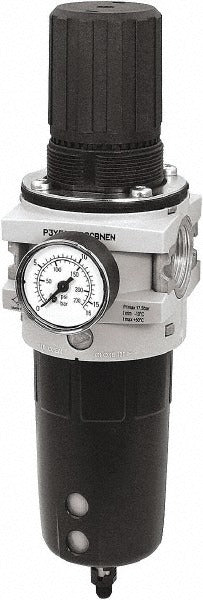

The PARKER P3YEA98ESCBNJN is a heavy-duty FRL combination unit configured as a single-piece filter/regulator with an integrated pressure gauge. Designed for compressed air systems, it filters particulates down to 5 microns while regulating downstream pressure up to 254 psi. The unit handles flow rates up to 465 SCFM, making it well suited for high-demand industrial and commercial pneumatic applications. It features a polypropylene bowl with a sight glass and bowl guard, a manual drain for collected condensate, and a 1 NPT port size. Licensed pipefitters, industrial maintenance technicians, and mechanical contractors typically specify and install this unit in compressed air distribution lines.

This filter/regulator is intended for use in industrial compressed air systems where clean, regulated air supply is required upstream of pneumatic tools, actuators, control valves, or other air-operated equipment. The 1 NPT port accommodates high-volume main line or branch line installations. Its modular connection design allows integration into Parker P3Y series FRL assemblies. Operating temperature range spans -40 degrees F to 140 degrees F, covering a wide range of indoor and outdoor industrial environments. The included pressure gauge provides immediate visual confirmation of regulated outlet pressure.

Key Features

• Single-piece filter/regulator configuration reduces plumbing connections and potential leak points
• 465 SCFM flow capacity supports high-volume compressed air demand
• 5-micron filtration rating removes fine particulates that can damage downstream pneumatic components
• Polypropylene bowl with integral sight glass and bowl guard for safe condensate monitoring
• Manual drain for routine condensate removal without shutting down the system
• Modular connection compatible with Parker P3Y series components for expandable FRL configurations
• Pressure gauge included on 1/4 NPT gauge port for direct outlet pressure reading

Compatibility

Designed for use in Parker P3Y series FRL combination assemblies with 1 NPT ported compressed air systems. Modular connection supports pairing with compatible P3Y series filter, regulator, or lubricator units.

Installation Notes

Installation should be performed by a qualified pipefitter or industrial maintenance technician. Depressurize and lock out the compressed air supply before installing or servicing this unit. Ensure pipe thread connections are sealed with appropriate thread sealant rated for compressed air service. Mount the unit upright with the bowl oriented downward to allow proper condensate collection, and verify that operating conditions remain within the rated pressure and temperature limits before returning the system to service.
