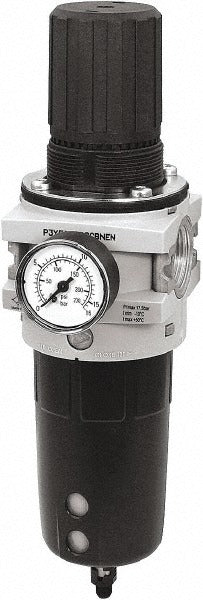

Parker P3YEA98ESABNJN Frl Filter Regulator 1 Npt 465 Scfm

Product Description

The PARKER P3YEA98ESABNJN is a heavy-duty FRL combination unit that integrates a filter and regulator into a single-piece assembly with an included pressure gauge. Rated for 465 SCFM airflow and a maximum supply pressure of 254 psi, this unit is built for high-demand compressed air systems in industrial and commercial environments. It features a polypropylene bowl with a built-in sight glass and automatic drain, reducing manual maintenance intervals. The 1 NPT port size suits larger-diameter compressed air lines, and the 5-micron filtration rating removes particulates before regulated air reaches downstream equipment. Licensed mechanical or pneumatic system technicians typically install and service this unit.

This FRL combination unit fits into compressed air distribution systems where space savings and simplified serviceability are priorities. The single-piece filter-regulator design reduces the number of connections in the air line compared to modular two-component setups. The 13.5-inch height and 3.5-inch width make it suitable for panel or inline mounting in equipment rooms, production floors, and utility spaces. The modular connection feature allows integration into Parker P3Y series pneumatic system assemblies. Operating temperature range is 14 degrees F to 140 degrees F, making it appropriate for most indoor industrial applications.

Key Features

• Single-piece filter and regulator design with included pressure gauge simplifies compressed air line layout
• 465 SCFM flow capacity handles high-volume air demand on 1 NPT supply lines
• 254 psi maximum supply pressure rated for heavy-duty pneumatic system service
• Automatic drain and polypropylene bowl with sight glass reduce manual maintenance requirements
• 5-micron filtration rating protects downstream pneumatic components from particulate contamination
• Modular connection supports integration with Parker P3Y series components
• Bowl guard included for physical protection of the polypropylene bowl

Compatibility

Designed for integration into Parker P3Y series compressed air preparation systems. Suitable for use on 1 NPT compressed air lines in industrial and commercial pneumatic applications requiring combined filtration and pressure regulation.

Installation Notes

Installation should be performed by a qualified technician familiar with compressed air system service. Depressurize and isolate the air supply line completely before installing or servicing this unit. Verify that the inlet supply pressure does not exceed the 254 psi rated maximum. Follow applicable facility safety procedures and local codes when working on pressurized pneumatic systems.
