Parker P3YEA98ESABNFN Frl Combination Unit 1 Inch Npt

Product Description

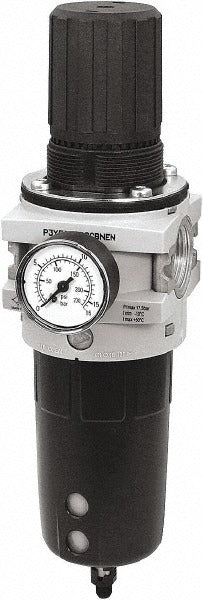

The PARKER P3YEA98ESABNFN is a heavy-duty, single-piece filter/regulator combination unit designed for compressed air systems in industrial and commercial applications. Part of the P3Y series, it delivers up to 465 SCFM of flow capacity with a maximum supply pressure of 254 psi. The unit ships with an integrated pressure gauge, a polypropylene bowl with bowl guard, and an automatic drain, reducing manual maintenance between service intervals. A built-in sight glass allows quick visual inspection of bowl fluid levels without disassembly. Filtration is handled at a 5-micron rating, removing particulates before regulated air reaches downstream equipment. Licensed HVAC technicians, industrial mechanics, and pneumatic system installers work with this class of component regularly.

This filter/regulator is sized for 1 inch NPT porting, making it suited to medium-to-large compressed air distribution lines in manufacturing, processing, and mechanical service environments. The heavy-duty body construction supports demanding duty cycles where standard-duty units would be undersized. The 4.4-ounce bowl capacity handles normal condensate accumulation between drain cycles, and the automatic drain operates without operator intervention. Modular connection capability allows integration into Parker P3Y series modular FRL assemblies where system design requires a multi-stage approach.

Key Features

• 465 SCFM maximum flow capacity for high-demand compressed air lines
• 254 psi maximum supply pressure rating for heavy-duty service
• 1 inch NPT port size for direct connection to standard compressed air headers
• 5-micron filtration removes fine particulates before downstream equipment
• Automatic drain eliminates manual condensate removal between service intervals
• Polypropylene bowl with bowl guard and integrated sight glass for safe, quick inspection
• Pressure gauge and modular connection included; mounts into P3Y series modular FRL systems

Compatibility

Designed as an OEM-style replacement and direct-install filter/regulator combination for Parker P3Y series modular FRL systems; verify 1 inch NPT port size and pressure/flow requirements match the target compressed air circuit before installation.

Installation Notes

Installation is typically performed by a licensed industrial mechanic or pneumatic systems technician. Depressurize and lock out the compressed air supply completely before removing any existing FRL components or threading in this unit. Confirm pipe thread engagement and apply appropriate thread sealant per the system's maintenance standards — do not overtighten the polypropylene bowl during reinstallation. Verify the automatic drain orientation and downstream pressure settings after returning the system to service.
