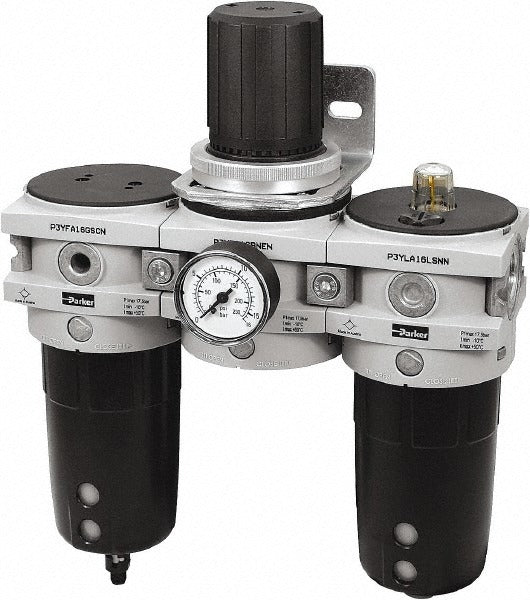

Parker P3YCB98SECNFLNF Frl 170 Scfm 254 Psi 1 Npt 3 Piece

Product Description

The PARKER P3YCB98SECNFLNF is a heavy-duty, 3-piece filter-regulator-lubricator (FRL) combination unit designed for compressed air preparation in industrial and commercial pneumatic systems. This P3Y-series unit handles up to 170 SCFM and a maximum supply pressure of 254 psi, making it suitable for high-demand air circuits. It filters particulate to 5 microns, regulates downstream pressure, and meters lubricant into the airstream in a single modular assembly. The 1 inch NPT port accommodates large-bore piping runs. Licensed HVAC mechanics, industrial maintenance technicians, and pipefitters install this type of unit upstream of pneumatic actuators, control valves, and air-powered tools.

This FRL unit is intended for use in industrial facilities, manufacturing lines, process plants, and commercial HVAC control systems where clean, regulated, and lubricated air is required. The modular connection design allows the filter, regulator, and lubricator bodies to be serviced or reconfigured independently without breaking the main air line. The unit includes a pressure gauge, bowl guard, sight glass, and mounting brackets, making it a complete, ready-to-install air preparation station. Operating temperature range spans -40 degrees F to 140 degrees F, supporting both heated and unheated mechanical spaces.

Key Features

• 3-piece modular assembly: filter, regulator, and lubricator in one unit with modular connection capability
• 170 SCFM flow capacity with a 254 psi maximum supply pressure rating
• 5-micron filtration rating removes fine particulate from the compressed air supply
• Manual drain on the filter bowl with a 4.4 oz filter bowl capacity and a 16.9 oz lubricator bowl capacity
• Polypropylene bowls with integrated bowl guards and a sight glass for fluid-level monitoring
• Includes pressure gauge, mounting brackets, and a 1/4 inch gauge port

Compatibility

Designed as an OEM-style replacement and direct-install unit for heavy-duty compressed air preparation applications requiring a 1 inch NPT connection in the PARKER P3Y series.

Installation Notes

Installation should be performed by a qualified industrial mechanic or pipefitter in accordance with applicable compressed air system codes and the facility safety plan. Depressurize and lock out the compressed air supply completely before removing any existing FRL components or making new connections. Mount the unit vertically with bowls pointing downward to ensure proper drainage and lubricator function. Do not exceed the rated supply pressure of 254 psi on the inlet side.
