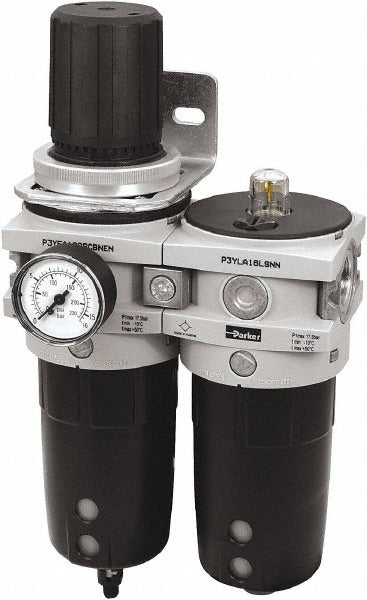

Parker P3YCA96SECNFLNF Frl Unit 3/4 Npt 315 Scfm

Product Description

The PARKER P3YCA96SECNFLNF is a heavy-duty, 2-piece FRL combination unit that integrates a filter, regulator, and lubricator into a single inline assembly for compressed air systems. Rated at 315 SCFM with a maximum supply pressure of 254 psi, it is built for demanding industrial and commercial pneumatic circuits requiring consistent air quality and pressure control. The unit ships with a pressure gauge, sight glass, bowl guard, and mounting brackets included. A 5-micron filter element removes particulate contamination before regulated, lubricated air reaches downstream tooling or actuators. Licensed HVAC technicians, pipefitters, and industrial maintenance professionals are the typical installers.

This FRL unit is suited for industrial compressed air lines operating between -40 degrees F and 140 degrees F. The 3/4 NPT port accommodates high-flow pneumatic circuits commonly found in manufacturing facilities, machine tools, and process automation lines. The modular connection design allows it to integrate with compatible Parker P3Y Series components for expanded system configurations. The manual drain on the filter bowl simplifies routine condensate removal without full system shutdown. Both the filter bowl and lubricator bowl are polypropylene construction, keeping the assembly lightweight relative to its flow capacity.

Key Features

• 315 SCFM flow rating supports high-demand compressed air circuits
• 254 psi maximum supply pressure for heavy-duty pneumatic applications
• 5-micron filtration removes fine particulate from the air supply
• Manual drain on filter bowl for straightforward condensate removal
• Polypropylene filter and lubricator bowls with bowl guards included
• Pressure gauge, sight glass, and mounting brackets included in the box
• Modular connection supports integration with Parker P3Y Series components

Compatibility

Designed as a direct-fit unit within the Parker P3Y Series modular FRL system. Compatible with compressed air lines using 3/4 NPT threaded connections and operating within the specified pressure and temperature range.

Installation Notes

Installation should be performed by a qualified pipefitter or industrial maintenance technician. Depressurize and lock out the compressed air supply completely before installing or servicing this unit. Mount the assembly vertically with the bowls oriented downward for proper condensate collection and lubricator function. Verify all NPT thread connections are sealed with appropriate thread tape or compound rated for compressed air service and confirm system pressure does not exceed the 254 psi maximum rating before returning the line to service.
