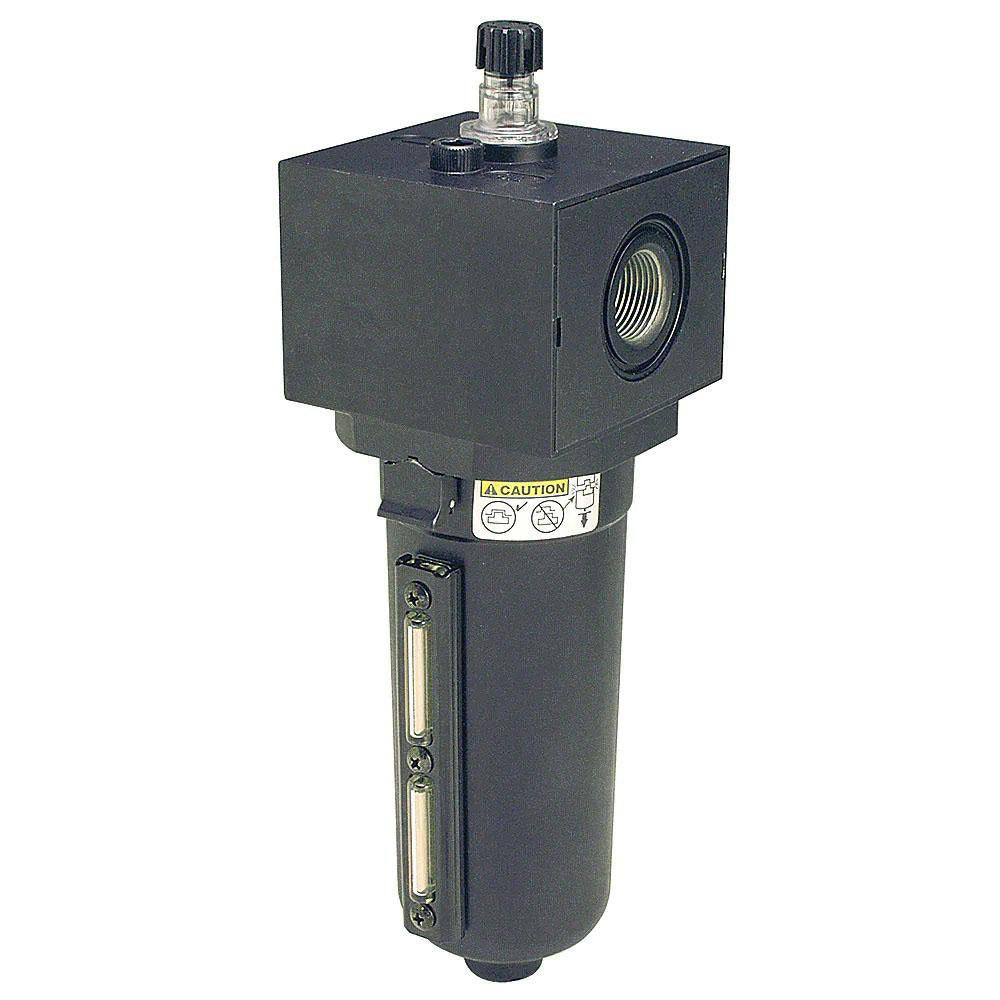

Parker P3NLA98LSN Air Lubricator 250 Cfm 1 Inch Npt

Product Description

The PARKER P3NLA98LSN is a heavy-duty mist lubricator designed for compressed air systems requiring consistent, controlled oil delivery at high flow rates. Rated at 250 CFM, this unit handles demanding industrial and commercial pneumatic applications where downstream tools, cylinders, and valves depend on reliable lubrication to reduce wear and extend service life. The body is constructed from zinc with a metal bowl, and the unit connects via 1-inch NPT threaded ends. A built-in sight glass allows technicians to monitor oil level and mist output without shutting down the line. It belongs to the Parker P3NL series, which is designed for modular FRL (filter-regulator-lubricator) assembly configurations.

This lubricator is suited for industrial compressed air systems in manufacturing, maintenance, and production environments where high-volume pneumatic equipment operates continuously. It installs inline on compressed air distribution lines feeding pneumatic tools, actuators, air motors, and similar equipment. The modular connection feature allows it to be combined with compatible P3NL series filter and regulator units for a complete FRL assembly. Minimum working temperature is 32 degrees F, making it appropriate for indoor industrial installations in climate-controlled or heated spaces.

Key Features

• 250 CFM rated flow capacity for high-demand pneumatic systems
• 1-inch NPT inlet and outlet for direct inline installation on standard compressed air piping
• Mist-style lubrication delivers consistent oil dispersion into the airstream
• Zinc body and metal bowl construction for durability in industrial environments
• Integrated sight glass for quick visual inspection of oil level and mist output
• Modular connection support for P3NL series FRL assembly configurations
• 18-ounce bowl capacity reduces refill frequency on high-cycle systems

Compatibility

The P3NLA98LSN is part of the Parker P3NL series and supports modular connection with compatible P3NL series filter and regulator components. Designed for inline installation on 1-inch NPT compressed air lines.

Installation Notes

Installation is typically performed by a licensed industrial or mechanical technician following applicable compressed air system codes and OSHA guidelines. Depressurize and lock out the compressed air line completely before installing or servicing this lubricator. Apply thread sealant to NPT connections per standard shop practice and verify all joints are leak-free before returning the system to pressure. Use only lubricating oils rated and recommended for pneumatic system use — do not substitute with unapproved fluids.
