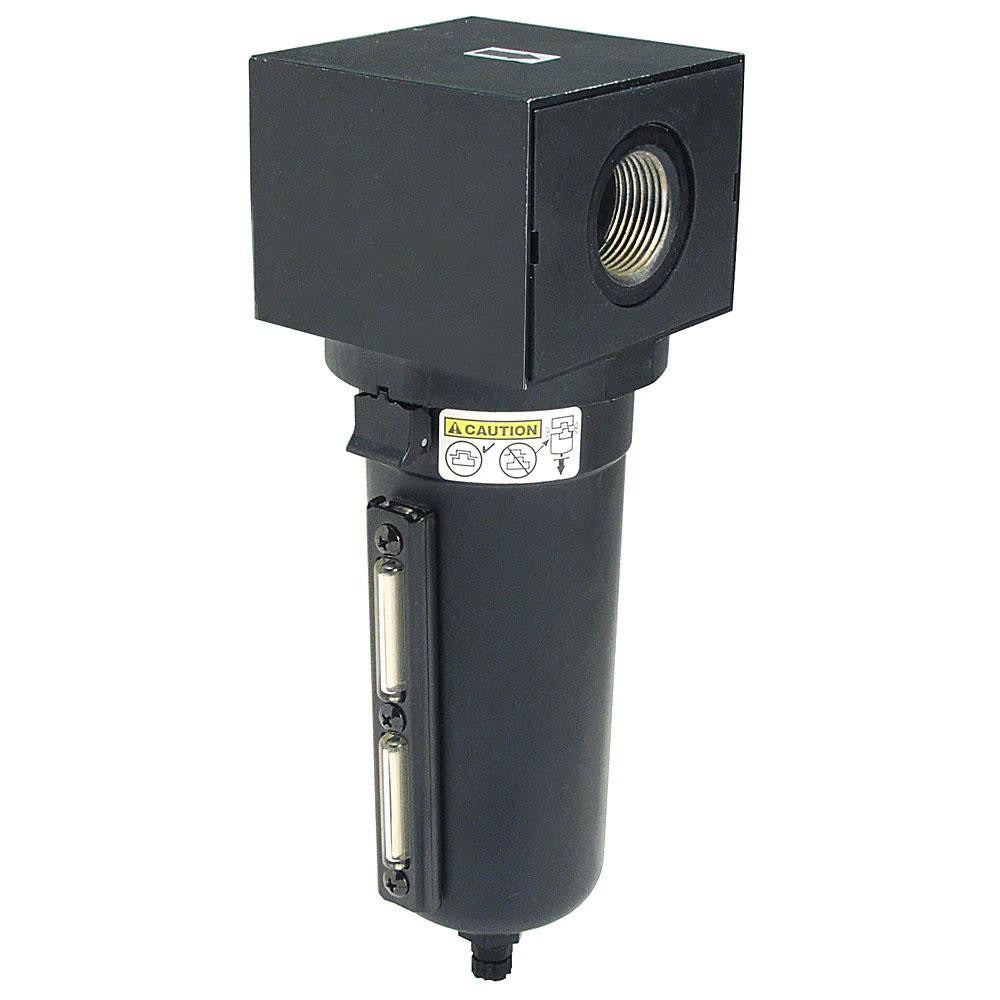

Parker P3NFA98GSM Air Filter 1 Inch Npt 300 Scfm

Product Description

The PARKER P3NFA98GSM is a heavy-duty compressed air filter designed to remove particulates from compressed air lines in demanding industrial and commercial applications. Featuring a 1 inch NPT port with standard NPT end connections, it delivers up to 300 standard cubic feet per minute (SCFM) of filtered airflow. The filter uses a 40 micron rating to capture solid contaminants before they reach downstream equipment, tooling, or pneumatic controls. This unit supports modular connection, allowing it to be ganged with other PARKER modular filter and regulator components. Installation is handled by qualified mechanics, pipefitters, or compressed air system technicians working on industrial air preparation assemblies.

The P3NFA98GSM is suited for compressed air preparation systems in light manufacturing, process automation, HVAC controls, and general industrial service. The 1 inch NPT port size makes it appropriate for medium to high-flow branch or main-line filtration points. Its modular connection capability supports integration into multi-stage air preparation stations where filtration, regulation, and lubrication are combined in a single assembly. This filter is a direct fit for applications requiring particulate removal at 40 microns ahead of pneumatic actuators, valves, and instrumentation.

Key Features

• 1 inch NPT end connections for standard pipe thread installation
• 300 SCFM rated airflow supports medium to high-demand compressed air systems
• 40 micron filtration rating removes particulate contamination from air supply
• Modular connection design allows integration with compatible filter-regulator-lubricator assemblies
• Plastic filter media material provides corrosion resistance in moisture-present environments
• Heavy-duty construction rated for continuous compressed air service

Compatibility

Designed as an OEM-style replacement or service component for heavy-duty compressed air filtration systems requiring a 1 inch NPT modular-connection filter at 40 micron filtration and up to 300 SCFM flow capacity.

Installation Notes

Installation should be performed by a qualified pipefitter or compressed air system technician. Depressurize and lock out the compressed air system completely before removing or installing any filter component. Apply appropriate thread sealant to NPT connections in accordance with the applicable mechanical code; do not overtighten plastic bowl or media components. Verify flow direction and inlet orientation before pressurizing the system after installation.
