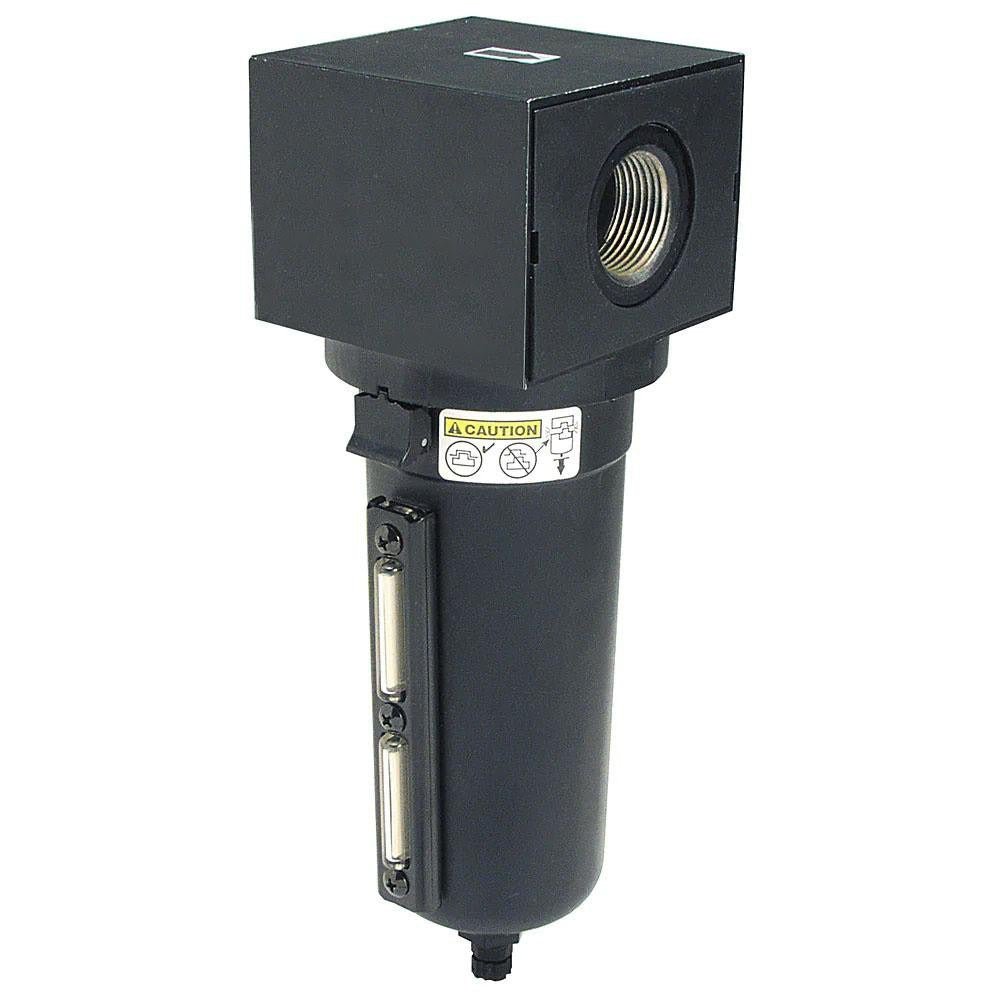

Parker P3NFA96GSM Compressed Air Filter 270 Scfm 3/4 Npt

Product Description

The PARKER P3NFA96GSM is a heavy-duty compressed air filter designed for industrial and commercial compressed air systems. It removes particulate contamination from compressed air lines using a 40-micron filter media, helping protect downstream equipment and tooling from debris-related wear. Rated at 270 standard cubic feet per minute (SCFM), it handles high-flow demand applications without excessive pressure drop. The 3/4 inch NPT port size suits a wide range of piping configurations. Installation is straightforward for any pipefitter, maintenance technician, or HVAC-mechanical contractor working on compressed air distribution systems.

This filter is suited for industrial plants, manufacturing facilities, workshops, and commercial mechanical rooms where clean compressed air is critical to system and tool performance. It is designed for inline installation on compressed air supply lines. The modular connection feature allows it to be combined with other Parker modular filter and regulator components to build multi-stage air preparation assemblies, giving technicians flexibility when configuring filter-regulator-lubricator (FRL) stations.

Key Features

• 40-micron filtration rating removes particulate from compressed air lines
• 270 SCFM flow capacity supports high-demand industrial applications
• 3/4 inch NPT end connections for standard pipe thread installation
• Modular connection design allows integration into multi-stage FRL assemblies
• Heavy-duty construction rated for continuous compressed air service

Compatibility

Designed as an OEM-style inline compressed air filter for industrial and commercial compressed air distribution systems with 3/4 inch NPT piping. Compatible with Parker modular air preparation components that accept modular connections.

Installation Notes

Installation should be performed by a qualified pipefitter or mechanical technician. Depressurize and lock out the compressed air supply line completely before removing or installing any inline filter component. Apply thread sealant appropriate for compressed air service to all NPT connections and torque fittings according to standard pipe thread practices. Verify that the system operating pressure and flow rate do not exceed the filter's rated specifications before returning the line to service.
