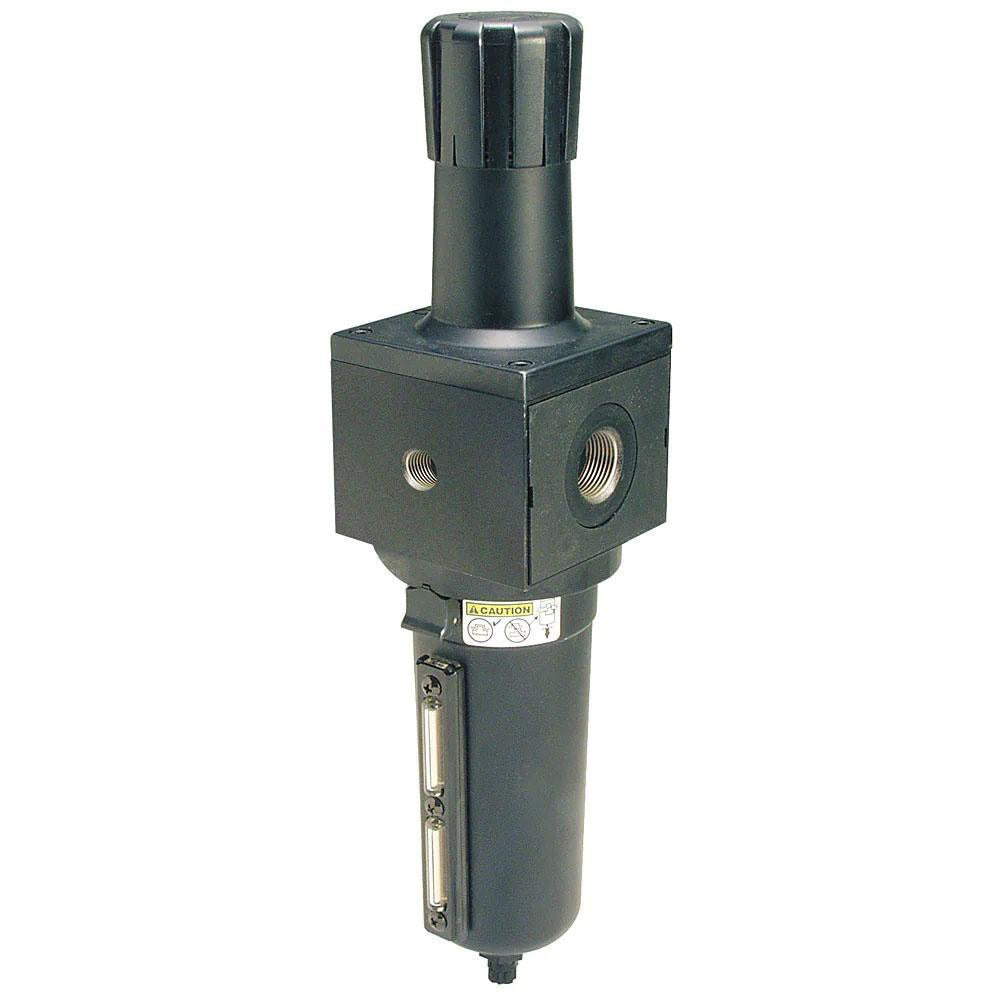

Parker P3NEA9PGSMBNN Frl Filter Regulator 250 Scfm 1-1/2 Npt

Product Description

The PARKER P3NEA9PGSMBNN is a heavy-duty FRL combination unit configured as a single-piece filter/regulator for compressed air systems. It accepts a 1-1/2 inch NPT connection and handles flow rates up to 250 SCFM with a maximum supply pressure of 250 psi. The unit features an aluminum body, a metal bowl with a sight glass for fluid-level monitoring, and a manual drain for controlled condensate removal. A 40-micron filtration rating removes particulates and moisture from the air stream before delivery to downstream equipment. This unit is installed by industrial maintenance technicians, pneumatic system specialists, and mechanical contractors working on compressed air distribution in commercial and industrial facilities.

The P3NEA9PGSMBNN is suited for heavy-duty compressed air filtration and pressure regulation in industrial process lines, manufacturing equipment, and large pneumatic tool systems. Its 1-1/2 inch NPT porting accommodates high-flow applications where smaller FRL units would create excessive pressure drop. The unit is part of the Parker P3NE series, which supports modular connections for building out multi-stage air preparation assemblies. Operating temperature range is 32 degrees F to 175 degrees F, making it appropriate for most indoor industrial environments.

Key Features

• Single-piece filter/regulator configuration reduces installation footprint and connection points
• 250 SCFM flow capacity with 250 psi maximum supply pressure for high-demand pneumatic circuits
• 40-micron filtration element removes particulates and bulk moisture from compressed air
• Metal bowl with integrated sight glass allows visual inspection of condensate level
• Manual drain for controlled removal of collected condensate
• Modular connection support enables integration with additional P3NE series components
• 1/4 inch gauge port included for field-installation of a downstream pressure gauge

Compatibility

Designed as a heavy-duty OEM-style filter/regulator for compressed air systems requiring 1-1/2 inch NPT porting. Compatible with Parker P3NE series modular air preparation assemblies.

Installation Notes

Installation should be performed by a qualified pneumatic systems technician or licensed mechanical contractor. Depressurize and lock out the compressed air supply completely before installing or servicing this unit. Mount the unit vertically with the bowl oriented downward to ensure proper condensate collection and drainage. Follow applicable OSHA compressed air safety standards and local mechanical codes when integrating into an existing air distribution system.
