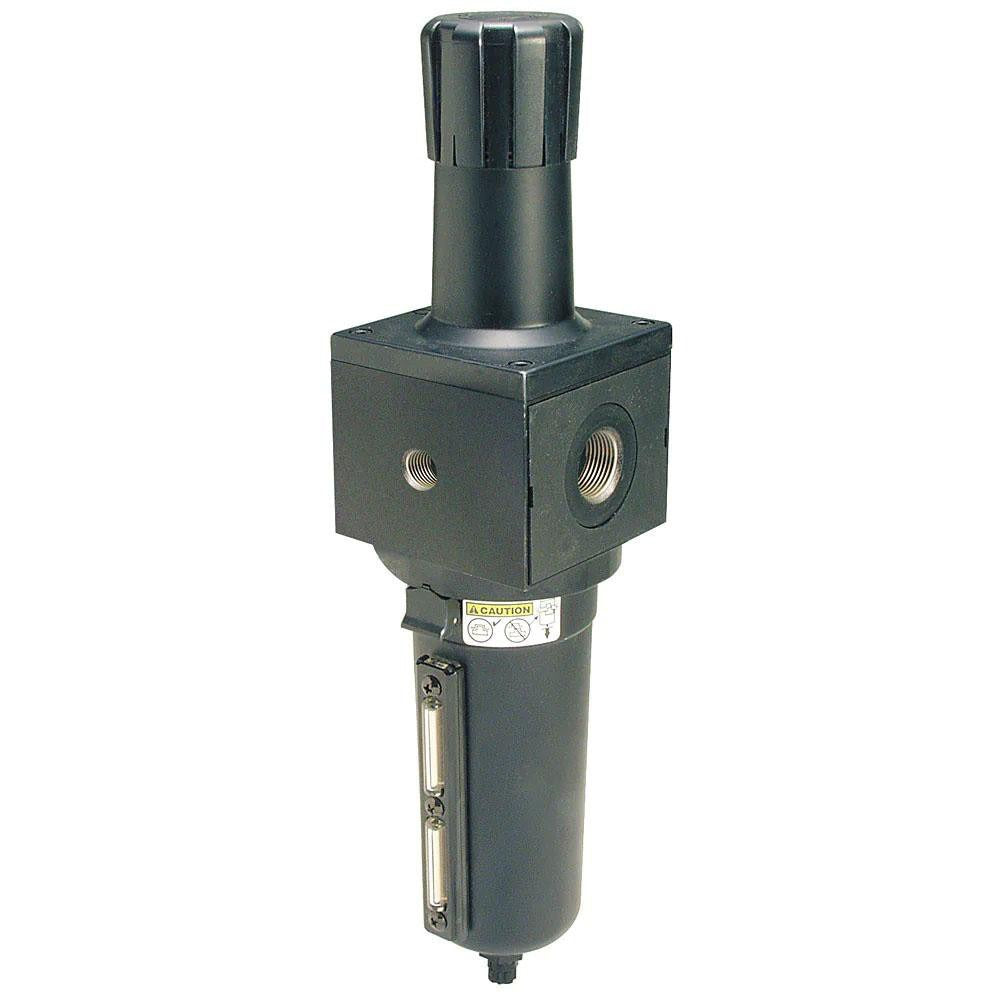

Parker P3NEA98GSMBNN Frl Unit 1 Npt 250 Scfm 250 Psi

Product Description

The PARKER P3NEA98GSMBNN is a heavy-duty FRL combination unit configured as a single-piece filter/regulator designed for compressed air systems in industrial and commercial applications. It accepts a 1-inch NPT connection and handles up to 250 SCFM flow at a maximum supply pressure of 250 psi. The aluminum body keeps weight manageable at 5.3 pounds while the metal bowl delivers the durability demanded in production and maintenance environments. A 40-micron filtration rating removes particulate contamination before air reaches downstream equipment. Licensed HVAC and industrial service technicians install this unit as part of pneumatic control systems, air tool supply lines, and automated process equipment.

This unit fits inline on compressed air supply lines in both light industrial and heavy-duty plant environments. The single-piece filter/regulator configuration reduces plumbing connections and simplifies installation where space is a constraint. The modular connection design allows integration into Parker P3NE series combination assemblies if a lubricator stage needs to be added later. A built-in sight glass allows quick visual inspection of bowl liquid levels without disassembly. The manual drain requires periodic operator attention to purge accumulated condensate from the metal bowl.

Key Features

• 1-inch NPT end connections rated to 250 psi maximum supply pressure
• 250 SCFM flow capacity supports high-demand pneumatic circuits
• 40-micron filter element removes particulate before downstream components
• Aluminum body with metal bowl for durability in industrial service
• Integrated sight glass for visual bowl inspection without teardown
• Modular connection compatible with Parker P3NE series for multi-stage FRL assembly
• Manual drain for controlled condensate purge from the bowl

Compatibility

Designed as an OEM-style replacement or new-installation filter/regulator within the Parker P3NE series modular FRL platform for 1-inch NPT compressed air supply lines.

Installation Notes

Installation should be performed by a qualified industrial or mechanical technician familiar with compressed air system service. Depressurize and lock out the supply line before removing or installing the unit. Orient the bowl downward per standard FRL mounting practice to allow proper condensate collection and drainage. Verify that downstream pressure requirements fall within the regulator adjustment range before returning the system to service.
