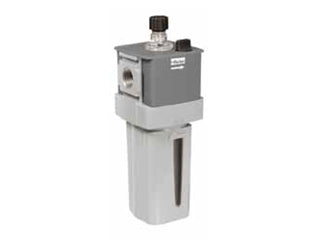

Parker P33LA94LGNN P33 Standard Global Modular Lubricator

Product Description

The Parker P33LA94LGNN is a modular lubricator for pneumatic systems. It provides effective lubrication for air flow, ensuring optimal performance of air-operated tools. This lubricator is designed for easy integration into existing air preparation systems.

• Port size: 1/2 NPT
• Supply pressure range: 0 to 150 PSIG
• Maximum flow: 102 SCFM

Product Highlights

The P33LA94LGNN is part of the Global Modular series. It is suitable for use in various industrial applications requiring pneumatic lubrication.

Product Information

Standard Information

• Manufacturer: Parker
• Part Number: P33LA94LGNN

Technical Specifications

• Port: 1/2 NPT
• Bowl Type: Poly with bowl guard
• Lubricator Drain: None
• Supply Pressure Range: 0 to 150 PSIG (0 to 10.3 bar)
• Maximum Flow: 102 SCFM (48 dm3/s)
• Operating Temperature: -10 degrees C to 52 degrees C (14 degrees F to 125 degrees F)
• Air Preparation Series: Global Modular
• Air Preparation Product Type: Lubricator
