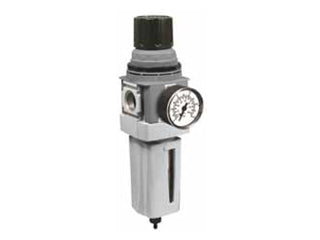

Parker P33EA96EGMBNGP P33 Standard Global Modular Filter/Regulator

Product Description

The Parker P33EA96EGMBNGP is a standard global modular filter and regulator designed for efficient air preparation in pneumatic systems. This filter regulator helps maintain consistent air quality and pressure, ensuring optimal performance of downstream equipment.

• Port Size: 3/4 NPT
• Element Rating: 5 micron
• Maximum Flow: 208 SCFM

Product Highlights

The filter regulator supports supply pressures up to 150 PSIG and operates in temperatures from minus twenty-five degrees Celsius to fifty-two degrees Celsius.

Product Information

Standard Information

• Manufacturer: Parker
• Part Number: P33EA96EGMBNGP

Technical Specifications

• Port: 3/4 NPT
• Bowl Type: Poly with bowl guard
• Filter Drain Type: Manual
• Element Rating: 5 micron
• Supply Pressure Range: 0 to 150 PSIG (0 to 10.3 bar)
• Secondary Pressure Range: 2 to 125 PSIG (0 to 8.6 bar)
• Gauge Type: None
• Relieving/Non-relieving: Relieving
• Maximum Flow: 208 SCFM (98 dm3/s)
• Operating Temperature: -25°C to 52°C (-13°F to 125°F)
• Air Preparation Series: Global Modular
• Air Preparation Product Type: Filter/Regulator
• Series: P33 Standard
• Port Inch/BSP: NPT
• Flow Range: > 200 SCFM
• Parker Division: Pneumatic
• Parker Group: Automation
