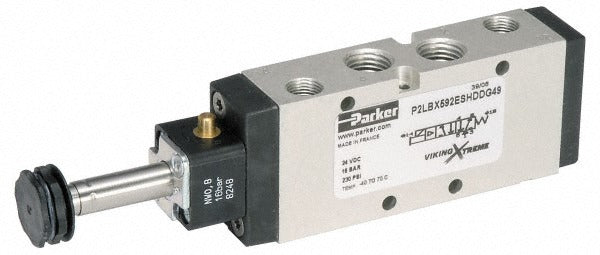

Parker P2LDX594ESHDDN Solenoid Valve 2-position 1/2 in

Product Description

The PARKER P2LDX594ESHDDN is a single-solenoid, 2-position directional control valve designed for fluid and pneumatic control applications. It features a 1/2-inch port size and operates in a normally open state through ports 1 and 2 when unactuated. The valve body is constructed from aluminum with a Buna-N seal, making it suitable for a range of compatible media. The Cv factor of 2.7 supports moderate flow rates, and the valve is rated for a minimum working pressure of 51 psi and a maximum operating temperature of 158 degrees F. Note that solenoid coils are not included and must be sourced separately. This valve is typically installed by licensed plumbers, HVAC technicians, or industrial maintenance professionals.

This valve is suited for use in fluid handling, pneumatic control, and process systems where a normally open 2-position directional valve is required. The valveless coil design allows for flexibility in coil selection to match specific voltage and electrical requirements of the target system. It is appropriate for both light industrial and mechanical system applications where aluminum body construction and Buna-N seals are compatible with the process media and operating environment.

Key Features

• Single solenoid, 2-position valveless coil design for flexible coil pairing
• Normally open through ports 1 and 2 in unactuated state
• 1/2-inch port size with a Cv factor of 2.7
• Aluminum body construction for lightweight durability
• Buna-N seal material for broad media compatibility
• Rated to a maximum temperature of 158 degrees F and minimum working pressure of 51 psi

Compatibility

Designed as an OEM-style directional control valve for fluid and pneumatic systems requiring a single-solenoid, 2-position, normally open configuration with a 1/2-inch port. Coil selection must be determined separately based on system voltage and electrical specifications. No specific model compatibility data was provided in the product input.

Installation Notes

Installation should be performed by a licensed plumber, HVAC technician, or qualified industrial maintenance professional familiar with directional control valves. Shut off system pressure and isolate the line before removing or installing the valve. Solenoid coils are not included and must be selected and installed separately to match the system electrical supply. Verify that the process media and operating pressure are compatible with aluminum body construction and Buna-N seals before installation.
