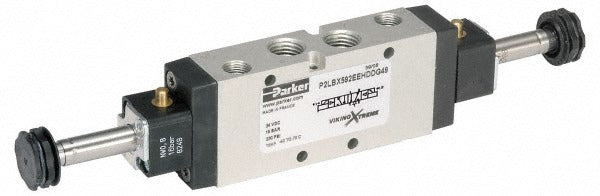

Parker P2LCX593EEHDDN Solenoid Valve 2-position 3/8 in

Product Description

The PARKER P2LCX593EEHDDN is a double solenoid, 2-position directional control valve designed for pneumatic and fluid control applications. It features a 3/8-inch port size and operates in a normally open state through ports 1 and 2 when unactuated. The valve body is constructed from aluminum with a Buna-N seal material, making it suitable for a broad range of media compatibility. With a Cv factor of 2.5 and a minimum working pressure of 22 psi, this valve fits demanding flow-control requirements. Note that solenoid coils are not included and must be sourced separately. Licensed technicians and fluid-system specialists are the typical installers for this component.

This valve is used in industrial pneumatic systems, fluid handling circuits, and process control applications where a 2-position, double-solenoid directional valve is required. Its normally open configuration through ports 1 and 2 makes it well suited for fail-safe or default-flow scenarios. The 3/8-inch port size accommodates standard line connections common in light industrial and commercial systems. Because solenoid coils are sold separately, integrators can select the appropriate coil for their voltage and environmental requirements.

Key Features

• Double solenoid, 2-position valveless-coil design for directional flow control
• Normally open through ports 1 and 2 in the unactuated state for fail-safe operation
• 3/8-inch port size for standard pneumatic and fluid line connections
• Aluminum body construction for lightweight durability
• Buna-N seal material for broad fluid and air compatibility
• Cv factor of 2.5 supporting adequate flow capacity for the port size
• Solenoid coils sold separately, allowing flexible coil selection

Compatibility

Designed as an OEM-style directional control valve for pneumatic and fluid systems requiring a 2-position double-solenoid configuration with a 3/8-inch port. Verify coil voltage, body material compatibility with media, and system pressure range before installation.

Installation Notes

Installation should be performed by a qualified fluid-power technician or licensed industrial mechanic. De-energize the system and relieve all line pressure before removing or installing the valve. Solenoid coils are not included and must be installed and wired to match the system voltage and control circuit requirements in accordance with applicable electrical codes. Do not exceed the maximum rated temperature of 158 degrees F during operation.
