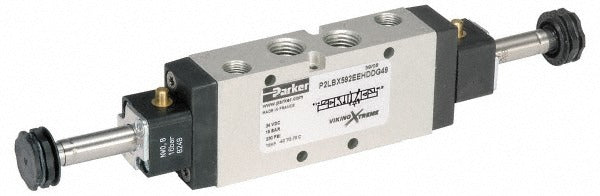

Parker P2LBX592EEHDDN 4-way 2-position Solenoid Valve

Product Description

The PARKER P2LBX592EEHDDN is a 4-way, 2-position double solenoid directional control valve designed for pneumatic and fluid control systems requiring precise flow switching. The valve body is constructed from aluminum and uses a Buna-N seal, making it suitable for a range of compatible media. It operates in a normally open state through ports 1 and 2 when unactuated. Rated for a maximum working pressure of 232 psi and a minimum of 22 psi, it delivers a Cv factor of 1.3 and handles operating temperatures up to 158 degrees F. Note that solenoid coils are not included with this valve body. Licensed technicians and automation specialists working with directional air or fluid circuits will find this valve suited to standard industrial and HVAC control panel builds.

This valve is used in applications requiring directional control of pneumatic actuators, cylinders, or fluid circuits. The 1/4 inch NPT port size makes it compatible with standard trade fittings found in commercial HVAC control systems, industrial automation panels, and process equipment. The double solenoid, valveless coil design allows integrators to select and install coils rated at either 12 Vdc or 24 Vdc to match the control voltage of the host system. This flexibility suits both retrofit and new-construction installations where control voltage may vary by application.

Key Features

• 4-way, 2-position double solenoid directional control valve
• Normally open through ports 1 and 2 in unactuated state
• Aluminum body with Buna-N seal for durability across compatible media
• Accepts coils rated at 12 Vdc or 24 Vdc — coils sold separately
• Maximum working pressure of 232 psi, minimum of 22 psi
• Cv factor of 1.3 for predictable flow sizing
• 1/4 inch NPT port for standard fitting compatibility

Compatibility

Designed as a valveless-coil-style directional control valve for pneumatic and compatible fluid systems using 1/4 inch NPT connections. Coils must be sourced separately and matched to the 12 Vdc or 24 Vdc control voltage of the target system.

Installation Notes

Installation should be performed by a qualified technician or automation specialist familiar with directional control valves and pneumatic or fluid circuit design. Depressurize and de-energize the system completely before removing any existing valve or fitting the new valve into the circuit. Solenoid coils are not included and must be installed prior to commissioning — verify coil voltage matches the control circuit before energizing. Follow applicable local codes and manufacturer torque guidelines for NPT fittings to ensure a leak-free connection.
