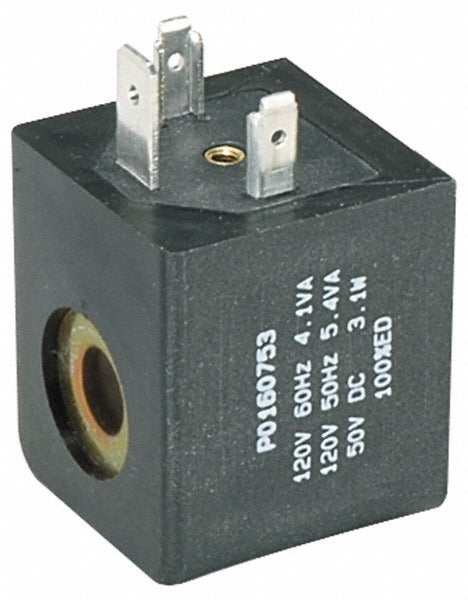

Parker P2FCA453 Solenoid Valve Normally Closed 120V Ac

Product Description

The PARKER P2FCA453 is a direct-acting, normally closed solenoid valve designed for precise fluid control in industrial and commercial applications. Built with a thermoplastic body and FKM fluorocarbon seals, it handles demanding media where chemical resistance is required. The valve operates on 120 volts AC and carries a maximum working pressure of 232 psi with a minimum working pressure of 22 psi. A Cv factor of 0.0350 makes this a low-flow control valve suited for tight metering applications. Parker specifies this valve for use with the Parker Viking Xtreme Valve system. Licensed plumbers, pipefitters, and industrial service technicians are the typical installers.

The P2FCA453 fits residential, commercial, and light industrial fluid control installations where a normally closed, fail-safe shutoff is required. It is rated for media temperatures up to 158 degrees F, making it appropriate for a range of liquid and gas service applications. The ISO 4400 Form A coil connector simplifies integration into standard control wiring harnesses. Parker designates this valve specifically for use with the Parker Viking Xtreme Valve product line.

Key Features

• Normally closed direct-acting design provides fail-safe shutoff on power loss
• Thermoplastic body for lightweight, corrosion-resistant construction
• FKM fluorocarbon seals for compatibility with aggressive media
• 120V AC operation with Class F coil rating
• 20 mm square 3-pin ISO 4400 Form A coil lead for standardized wiring connections
• IP 65 rating for protection against dust ingress and low-pressure water jets

Compatibility

Designed for use with the Parker Viking Xtreme Valve system as specified by the manufacturer.

Installation Notes

Installation should be performed by a licensed pipefitter, plumber, or qualified industrial technician familiar with fluid control systems. Depressurize and de-energize the system fully before removing or installing the valve. Verify that supply voltage matches the 120V AC coil rating before energizing. Wiring to the ISO 4400 Form A connector should comply with applicable NEC guidelines and local electrical codes.
