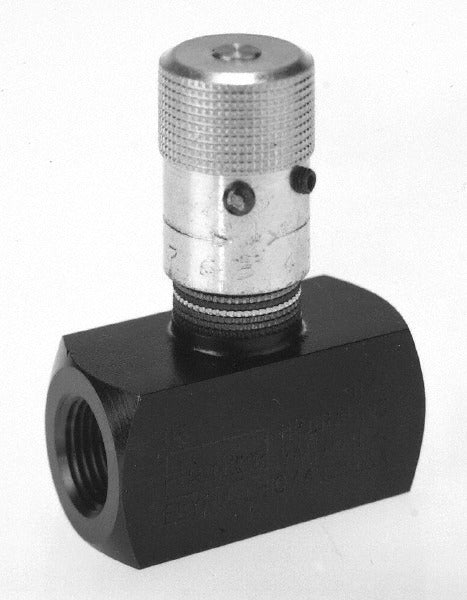

Parker N1020S Hydraulic Control Valve 15 Gpm 5000 Psi

Product Description

The PARKER N1020S is a hydraulic control valve engineered for high-pressure fluid power systems. It features a 7/8-inch inlet with a 7/8-14 UNF thread configuration and supports a maximum flow rate of 15 GPM at pressures up to 5,000 psi. The steel body construction is suited for demanding mobile and industrial hydraulic circuits. Licensed hydraulic system technicians and fluid power specialists are the primary installers of this valve in equipment service environments.

This valve is appropriate for use in mobile equipment, industrial machinery, and other hydraulic systems where precise flow control at elevated pressures is required. The 7/8-14 UNF thread standard makes it compatible with common SAE hydraulic fittings found in agricultural, construction, and industrial hydraulic circuits. The 15 GPM flow rating accommodates mid-range hydraulic actuator and motor circuits in both residential service equipment and light commercial machinery.

Key Features

• Maximum working pressure of 5,000 psi for high-pressure circuit applications
• 15 GPM maximum flow rate supports mid-range actuator and motor loads
• 7/8-14 UNF thread for compatibility with standard SAE hydraulic fittings
• Steel body construction provides durability in demanding fluid power environments
• Compact single-package unit with a weight of 1.3 pounds

Compatibility

Designed as an OEM-style replacement or direct-fit hydraulic control valve for fluid power systems utilizing 7/8-14 UNF threaded SAE connections with flow requirements at or below 15 GPM and operating pressures up to 5,000 psi.

Installation Notes

Installation should be performed by a qualified fluid power technician or hydraulic systems professional. Depressurize and isolate the hydraulic circuit completely before removing or installing any valve. Follow applicable OSHA and fluid power safety standards for high-pressure hydraulic work. Inspect all mating threads and sealing surfaces before assembly and use appropriate thread sealant or O-ring face seal fittings as specified by the system design.
