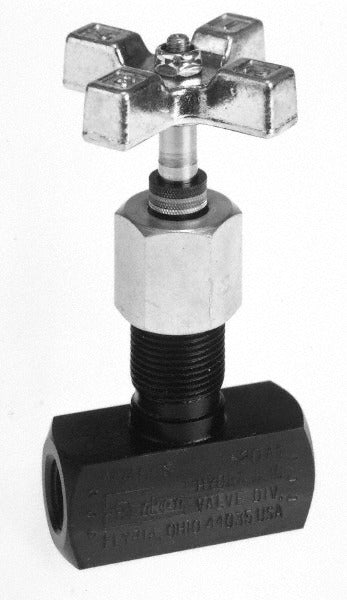

Parker MV820S Hydraulic Control Valve 8 Gpm 5000 Psi

Product Description

The PARKER MV820S is a hydraulic control valve designed for use in high-pressure hydraulic circuits. It features a 3/4 inch inlet with a 3/4-16 UNF thread and handles flow rates up to 8 GPM at a maximum working pressure of 5,000 psi. The body is constructed from steel for durability in demanding hydraulic system environments. This valve is installed by hydraulic system technicians and industrial maintenance professionals working on mobile or stationary hydraulic equipment.

The MV820S is suited for use in hydraulic systems requiring precise flow control or pressure regulation in industrial, agricultural, or mobile equipment applications. Its 3/4-16 UNF thread size makes it compatible with standard hydraulic fittings and manifolds. The compact steel body and straightforward threading allow integration into existing hydraulic circuits during new installation or service work.

Key Features

• Maximum working pressure of 5,000 psi for high-pressure hydraulic applications
• 8 GPM maximum flow rate supports moderate to high flow hydraulic circuits
• 3/4 inch inlet with 3/4-16 UNF thread for compatibility with standard hydraulic fittings
• Steel body construction provides strength and resistance in demanding conditions
• Sold individually, no multi-pack minimum required

Compatibility

Designed as an OEM-style replacement or direct-fit hydraulic control valve for systems using 3/4-16 UNF ported connections rated to 5,000 psi and 8 GPM flow capacity.

Installation Notes

Installation should be performed by a qualified hydraulic technician. Depressurize and de-energize the hydraulic system fully before removing or installing any valve components. Use appropriate thread sealant compatible with hydraulic fluid and verify torque requirements per the equipment manufacturer specifications. Ensure all connections are leak-free before returning the system to service.
