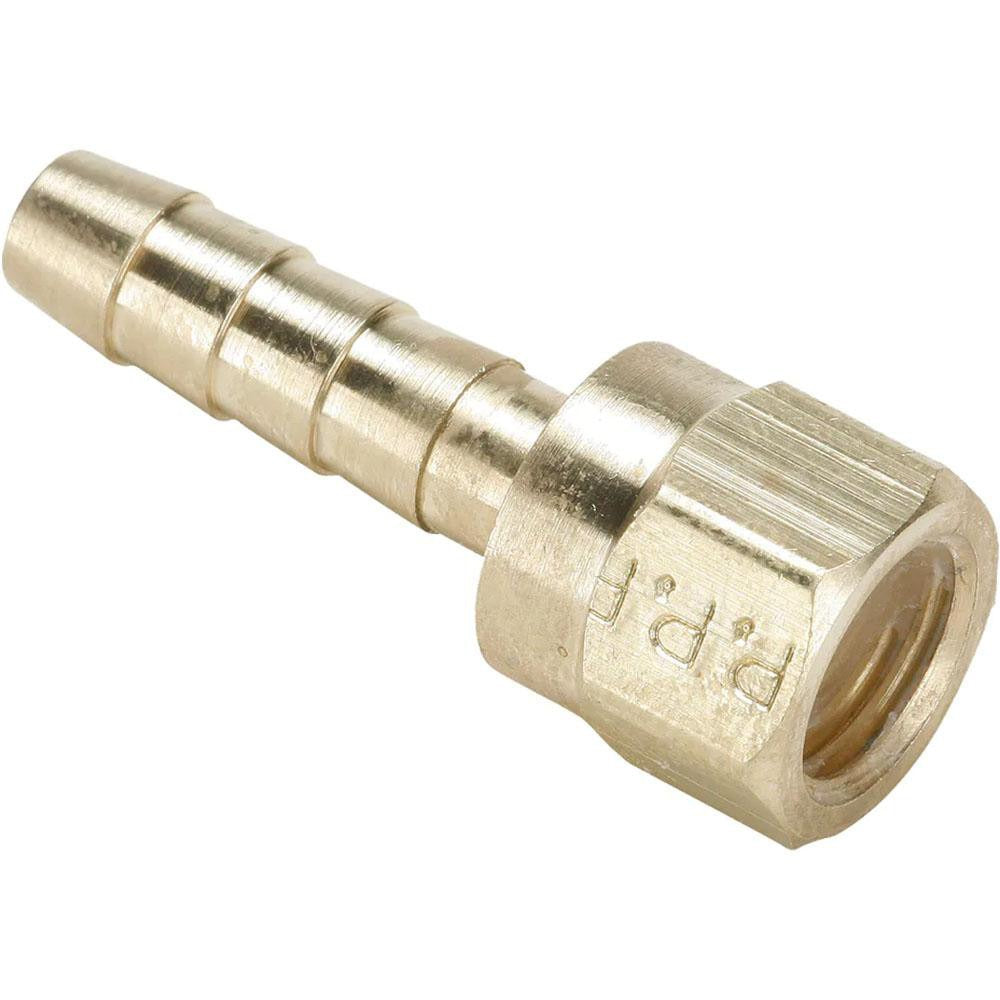

Parker MSC128HBLSV-5-4 Barbed Hose Fitting 1/4 in

Product Description

The PARKER MSC128HBLSV-5-4 is a brass barbed hose fitting configured as a female connector, designed to join a threaded port to a flexible hose in fluid transfer systems. It features a 1/4 inch NPSM female swivel ball-end thread on one side and a hose barb sized for 5/16 inch inside diameter hose on the other. The brass construction provides corrosion resistance suitable for water, hydraulic fluid, and many common fluids. The swivel ball-end design allows the fitting to rotate during installation, reducing hose twist and simplifying routing in tight spaces. Rated for service from -40 degrees F to 160 degrees F, this fitting suits a broad range of light-duty industrial and mechanical fluid line applications.

This fitting is used in plumbing, HVAC, and light industrial fluid systems where a threaded female port must transition to a barbed hose connection. It is well suited for residential and commercial service applications involving water lines, coolant circuits, and similar low-to-moderate pressure fluid transfer lines. The compact overall length of 1.5 inches makes it practical for installations with limited clearance. Licensed plumbers, HVAC technicians, and mechanical contractors are the primary installers for this type of fitting.

Key Features

• Brass construction for corrosion resistance in water and fluid service
• 1/4 inch NPSM female swivel ball-end thread for leak-resistant threaded connections
• Hose barb sized for 5/16 inch inside diameter hose
• Swivel ball-end design reduces hose twist during installation
• Operating temperature range of -40 degrees F to 160 degrees F
• Compact 1.5 inch overall length for use in restricted spaces

Compatibility

Designed as an OEM-style barbed hose fitting for flexible hose lines with a 5/16 inch inside diameter paired with a 1/4 inch NPSM female threaded port in fluid transfer systems.

Installation Notes

Installation should be performed by a licensed plumber or qualified mechanical technician. Shut off and depressurize the fluid system completely before removing or installing any fitting. Hand-tighten the swivel end onto the mating port before applying a wrench to the hex head to avoid cross-threading. Confirm hose compatibility by verifying the hose inside diameter and pressure rating match the application requirements before pressurizing the system.
