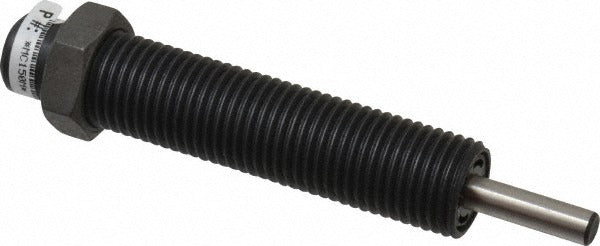

Parker MC150M Male Button Shock Absorber M14x1.5

Product Description

The PARKER MC150M is a male button-style shock absorber designed to decelerate and cushion moving loads in industrial automation and motion control applications. The unit features a 0.19-inch stainless steel rod diameter, a 0.66-inch body outside diameter, and a 0.5-inch stroke length. The body is steel with a black oxide finish. With an overall length of 3.41 inches and an M14 x 1.5 threaded mount, it installs directly into machine frames, end stops, and linear actuator assemblies. It operates within a temperature range of 32 degrees F to 150 degrees F, making it suitable for standard indoor industrial environments. Weighing 0.12 pounds, it fits in tight spaces without adding significant mass to the assembly.

The MC150M is used in light-duty industrial automation applications where controlled deceleration of moving components is required. Typical installations include end-of-travel stops on pneumatic cylinders, conveyor positioning systems, slide tables, and small robotic end effectors. The male button contact face allows it to engage flat or near-flat surfaces on the moving load. It is specified and installed by mechanical maintenance technicians, automation integrators, and OEM machine builders working on factory floor equipment.

Key Features

• Male button absorber type for flat-surface load contact
• Stainless steel rod for corrosion resistance in demanding environments
• Steel body with black oxide finish for durability
• M14 x 1.5 thread for direct mounting into standard machine frames
• 0.5-inch stroke provides controlled deceleration travel
• Operating range of 32 degrees F to 150 degrees F suits typical indoor industrial use

Compatibility

Designed as an OEM-style replacement or new-install shock absorber for light-duty industrial automation equipment requiring an M14 x 1.5 threaded male button shock absorber with a 0.5-inch stroke.

Installation Notes

Installation is typically performed by a qualified mechanical technician or automation integrator. De-energize and lock out all pneumatic and electrical energy sources before servicing any motion control component in the assembly. Thread the unit into the mounting location using a calibrated torque wrench and follow the machine manufacturer's fastener specifications. Confirm full stroke travel is unobstructed after installation before returning the system to service.
