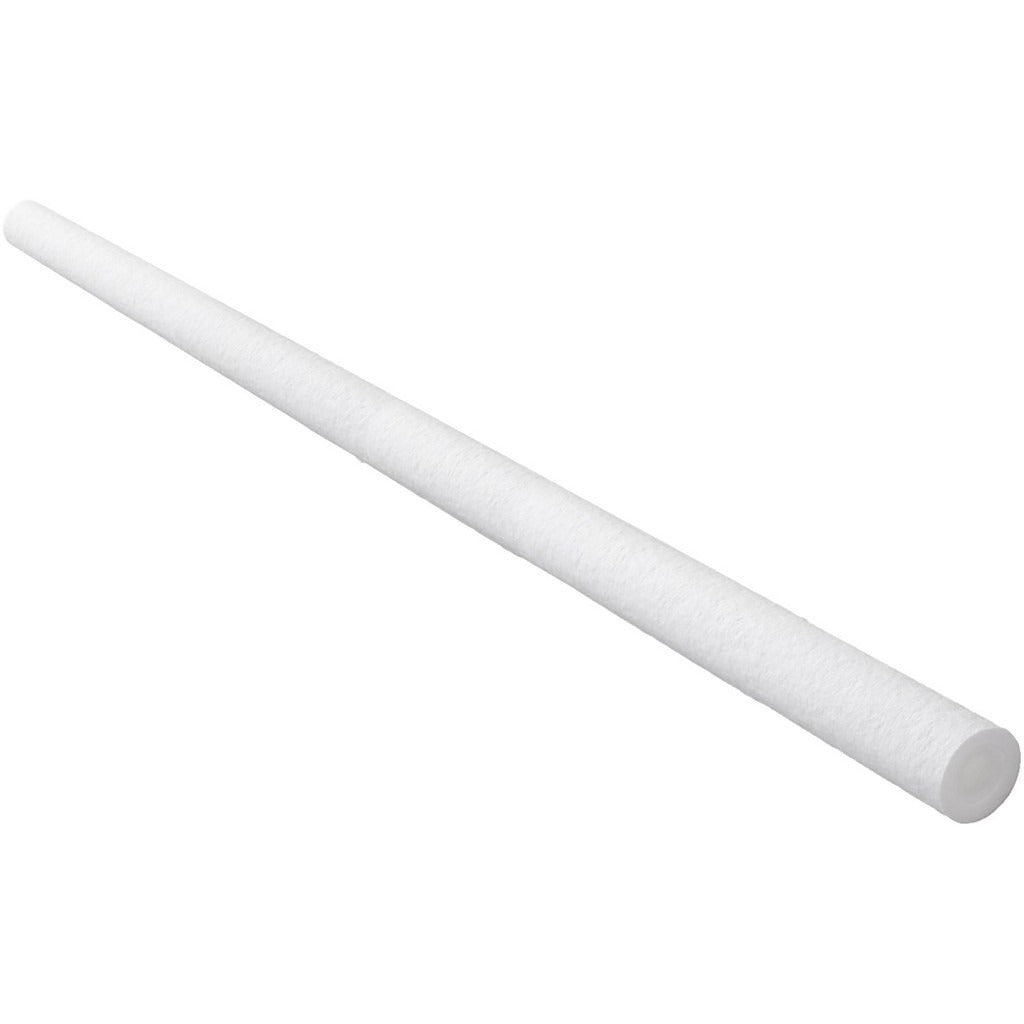

Parker MBA5M40 Meltblown Filter Cartridge 5 Micron 40 in

Product Description

The PARKER MBA5M40 is a thermally bonded meltblown polypropylene filter cartridge rated at 5 microns, measuring 40 inches in length with a 2.5-inch outside diameter. It is designed for liquid filtration systems where sediment, particulate, and dirt removal is required. The meltblown construction creates a graded-density filter structure that traps particles throughout the depth of the media rather than only at the surface. This cartridge handles flow rates up to 20 GPM and operates in liquids up to 180 degrees F, making it suitable for a wide range of commercial and industrial inline filtration applications. Licensed plumbers and water treatment technicians are the typical installers.

This cartridge is used in standard inline filter housings that accept a 40-inch by 2.5-inch cartridge format. Typical applications include process water filtration, pre-filtration for reverse osmosis systems, industrial fluid handling, and general sediment reduction in supply lines. The all-polypropylene construction makes it compatible with many aqueous process streams where chemical resistance to common water treatment agents is needed. It is well suited for both commercial and light industrial installations where consistent particulate control is required upstream of sensitive equipment or distribution points.

Key Features

• 5-micron rating removes sediment, particulate, and dirt from liquid streams
• Thermally bonded meltblown construction provides graded-density depth filtration
• All-polypropylene media, core, and construction for broad chemical compatibility
• Rated up to 20 GPM maximum flow rate
• Handles liquid temperatures up to 180 degrees F
• 40-inch length with 2.5-inch outside diameter fits standard large-format filter housings

Compatibility

Designed as a replacement cartridge for standard inline filter housings that accept a 40-inch by 2.5-inch meltblown cartridge with a 5-micron rating. Intended for use with liquid service applications.

Installation Notes

Installation should be performed by a licensed plumber or qualified water treatment technician. Shut off the water supply and relieve system pressure completely before opening the filter housing. Inspect the housing o-ring and replace if worn before reinstalling the cartridge. Follow all applicable local plumbing codes when servicing inline filtration systems.
