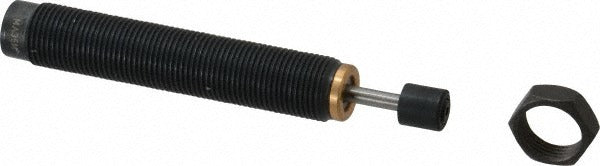

Parker MA35M Male Button Shock Absorber M12 X 1

Product Description

The PARKER MA35M is a male button shock absorber designed to decelerate and cushion moving loads in automated machinery and industrial motion control systems. It features a 0.13-inch rod diameter, a 0.42-inch outside diameter, and a 0.4-inch stroke length with an overall length of 3.31 inches. The M12 x 1 threaded body allows for direct panel or bracket mounting. The rod is constructed of stainless steel for corrosion resistance, while the body is steel with a black oxide finish for durability in shop and factory environments. This compact absorber suits applications where space is limited and controlled deceleration is required.

The MA35M is suited for light-duty automation applications including pneumatic cylinder end-of-stroke damping, robotic fixture stops, and small conveyor system cushioning. Its male button configuration allows it to absorb impact loads from passing actuators or components without requiring positive attachment. Operating temperatures range from 32 degrees F to 150 degrees F, making it appropriate for standard indoor industrial environments. Maintenance technicians and machine builders in manufacturing and assembly operations are the typical installers.

Key Features

• Male button absorber type for passive impact cushioning without positive attachment
• 0.4-inch stroke length for compact deceleration in tight installations
• M12 x 1 thread for secure panel or bracket mounting
• Stainless steel rod for corrosion resistance in demanding environments
• Black oxide steel body for added surface protection
• Operating range of 32 degrees F to 150 degrees F for standard indoor industrial use

Compatibility

Designed as an OEM-style replacement or drop-in component for light-duty industrial automation systems requiring M12 x 1 threaded male button shock absorbers with a 0.42-inch outside diameter.

Installation Notes

Installation is typically performed by mechanical or automation maintenance technicians. De-energize all pneumatic and electrical circuits before mounting or replacing shock absorbers in a live system. The M12 x 1 thread should be engaged with appropriate thread depth into a compatible tapped hole or bracket to ensure proper load transfer. Do not exceed the rated stroke or operating temperature range during service.
