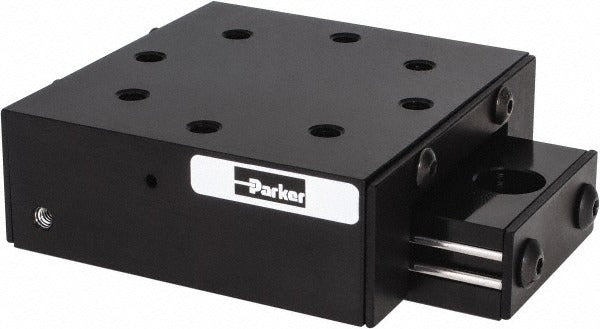

Parker M4501 Ball Bearing Slide Table 25mm Travel

Product Description

The PARKER M4501 is a ball bearing slide table designed for precise linear motion in industrial positioning and automation applications. Rated to 18.2 kg load capacity, it delivers smooth, repeatable travel over a 25mm stroke using a recirculating ball bearing mechanism. The table measures 66.5mm long by 66.5mm wide by 25.4mm high and weighs approximately 0.6 pounds. Eight M5 mounting holes are provided for secure attachment to fixtures, stages, or actuator bodies. This component is typically installed by mechanical technicians and automation integrators working on precision motion assemblies, machine tool setups, and test fixtures.

The M4501 is suited for light-duty linear positioning tasks in both laboratory and industrial environments. Its compact footprint and standardized M5 hole pattern make it a practical fit for benchtop automation stages, optical positioning rigs, and small-format XY tables. The 25mm travel range addresses short-stroke indexing and fine adjustment requirements common in instrumentation and light manufacturing lines.

Key Features

• 18.2 kg load capacity supports reliable positioning under moderate working loads
• 25mm travel stroke suits short-range linear indexing and fine adjustment
• Ball bearing mechanism provides smooth, low-friction, repeatable motion
• Eight M5 mounting holes allow flexible fixture and stage integration
• Compact 66.5mm x 66.5mm table footprint minimizes space requirements
• Lightweight construction at 0.6 pounds reduces added mass on positioning systems

Compatibility

Designed as an OEM-style replacement or direct-fit component for light industrial ball bearing slide table applications using M5 mounting hardware and 25mm travel stroke configurations.

Installation Notes

Installation is typically performed by mechanical technicians or automation engineers. De-energize and lock out all actuator and drive systems before mounting or dismounting the slide table. Use properly sized M5 fasteners torqued to the fixture manufacturer's specification to avoid distorting the table base. Verify smooth, unobstructed travel through the full 25mm stroke before returning the assembly to service.
