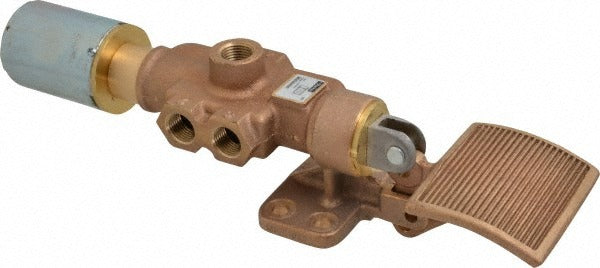

Parker M06244640 4-way Pedal Valve 0.5in Npt 215 Psi

Product Description

The PARKER M06244640 is a manually operated 4-way directional control valve designed for pneumatic or hydraulic circuit control in industrial and trade applications. Actuated by a foot pedal and mounted via a foot bracket, it allows hands-free operation in press, clamp, or actuator circuits. The valve features a spring-return mechanism that automatically returns to its neutral position when pedal pressure is released, providing inherent safety in two-position operation. It accepts a 0.5 inch NPT port connection and is rated for a maximum working pressure of 215 psi, with an operating temperature range of -15 degrees F to 200 degrees F. Licensed mechanical contractors and industrial maintenance technicians are the typical installers.

This valve is suited for stationary machinery, assembly line tooling, foot-operated pneumatic presses, and similar applications where the operator needs both hands free during actuation. The pedal actuator and foot bracket mounting make it practical for fixed-station installations on factory floors or in maintenance bays. It is appropriate for both light industrial and heavy-duty manual circuit control tasks requiring a reliable 2-position, 4-way directional valve with automatic spring return.

Key Features

• 4-way, 2-position directional valve with spring return for automatic neutral reset
• Foot pedal actuator enables hands-free operation at fixed workstations
• 0.5 inch NPT outlet for standard threaded pneumatic or hydraulic plumbing
• Maximum working pressure of 215 psi suits a wide range of industrial circuits
• Operating temperature range of -15 degrees F to 200 degrees F for varied environments
• Foot bracket mounting style for secure, floor-level installation

Compatibility

Designed as an OEM-style replacement or new-installation 4-way spring-return foot pedal valve for industrial pneumatic and hydraulic control systems requiring 0.5 inch NPT porting at up to 215 psi.

Installation Notes

Installation should be performed by a qualified industrial maintenance technician or licensed mechanical contractor familiar with pneumatic or hydraulic circuit design. Depressurize and lock out the system fully before removing an existing valve or making any plumbing connections. Use appropriate thread sealant rated for the working fluid and pressure on all NPT fittings, and verify all connections are leak-free before returning the system to service. Mount the foot bracket on a stable, level surface to prevent unintended actuation during operation.
