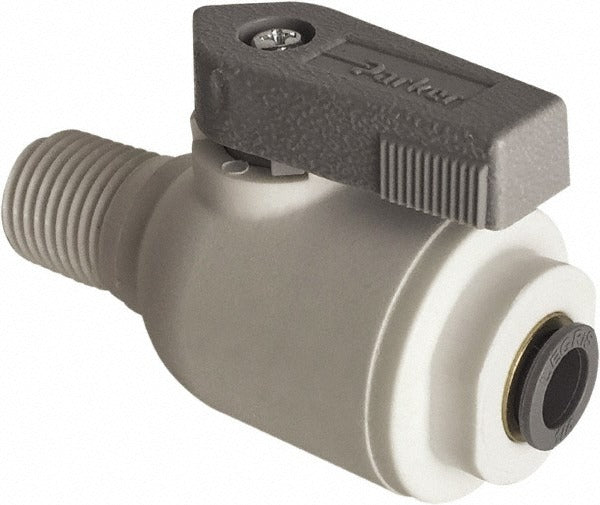

Parker LFPP6VMC2 Ball Valve 1/8 in Mnpt Push-to-connect Full Port

Product Description

The PARKER LFPP6VMC2 is a male connector bi-directional manual ball valve designed for 1/8-inch pipe applications using an MNPT x Push-To-Connect end connection. Built with a polypropylene body and EPDM seals, this full-port valve delivers low flow restriction and reliable shutoff in fluid handling systems. The wedge-style handle provides a positive, tactile open-and-close indication. Rated for use in systems where FDA, NSF-51, and NSF-61 compliance is required, this valve is well suited for potable water, food-service, and sanitary fluid circuits. Licensed plumbers and fluid system technicians are the typical installers for this type of fitting.

This valve is used in residential and light commercial plumbing, water treatment, filtration, and food-service equipment installations where a compact, push-to-connect ball valve with a male NPT outlet is needed. The 3/8-inch outside diameter tube connection pairs with standard PTC tubing, allowing tool-free tube insertion. The full-port design keeps pressure drop minimal, which is critical in low-flow or gravity-fed systems. NSF-61 certification makes this valve appropriate for drinking water contact applications.

Key Features

• Full-port design minimizes flow restriction and pressure drop
• MNPT x Push-To-Connect end connection for fast, tool-free tube installation
• Polypropylene body construction for corrosion resistance in water service
• EPDM seals provide broad chemical compatibility and long-term sealing performance
• Wedge handle gives clear visual indication of valve position
• FDA, NSF-51, and NSF-61 certified for potable water and food-contact applications

Compatibility

Designed as an OEM-style replacement or new-installation valve for 1/8-inch MNPT pipe connections paired with 3/8-inch outside diameter push-to-connect tubing in plumbing, water treatment, and food-service fluid systems.

Installation Notes

Installation should be performed by a licensed plumber or qualified fluid systems technician in accordance with applicable IPC and local plumbing codes. Shut off the water supply and relieve system pressure completely before removing or installing any valve. Apply thread sealant or PTFE tape to the MNPT threads per code requirements; hand-tighten first, then wrench-tighten to avoid cracking the polypropylene body. Confirm the push-to-connect tube end is cut cleanly and squared before insertion to ensure a leak-free seal.
