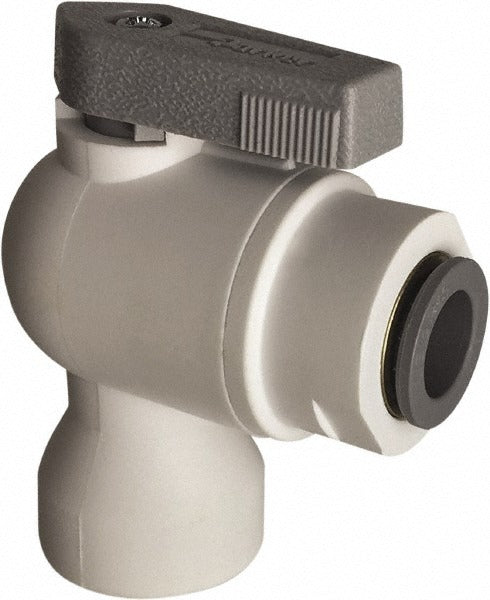

Parker LFPP6VFE4 Female Elbow Ball Valve 1/4 in Full Port

Product Description

The PARKER LFPP6VFE4 is a female elbow, bi-directional manual ball valve designed for 1/4 inch pipe connections in fluid-handling systems. It features a full port design with MNPT x Push-To-Connect end connections, allowing straight-through flow with minimal pressure drop. The body is constructed from polypropylene with EPDM seals, making it well suited for water and compatible fluid service. A wedge-style handle provides positive shutoff. This valve is commonly installed by plumbers, HVAC technicians, and water treatment professionals in systems where compact, angled shutoff is required.

This valve is suited for residential and light commercial plumbing, water treatment, and HVAC hydronic applications where a 1/4 inch pipe elbow shutoff is needed. The push-to-connect end simplifies installation without soldering or additional fittings. The polypropylene body and EPDM seal materials make it appropriate for potable water systems, supported by FDA, NSF-51, and NSF-61 certifications. The 3/8 inch tube outside diameter push-to-connect port accepts standard tubing for quick field assembly.

Key Features

• Full port ball valve design minimizes flow restriction
• MNPT x Push-To-Connect end connections for tool-free tube attachment
• Polypropylene body resists corrosion in water service applications
• EPDM seals compatible with potable water and hydronic fluids
• FDA, NSF-51, and NSF-61 certified for use in potable water systems
• Wedge-style handle provides clear open and closed indication

Compatibility

Designed as an OEM-style replacement or new-installation valve for 1/4 inch pipe systems using MNPT x Push-To-Connect fittings, compatible with 3/8 inch outside diameter tubing.

Installation Notes

Installation should be performed by a licensed plumber or qualified technician in accordance with local plumbing codes and IPC requirements. Shut off system pressure and depressurize the line before installing or removing the valve. Ensure MNPT threads are wrapped with thread seal tape and that push-to-connect tubing is cut clean and square before insertion. Do not exceed the rated operating conditions for the polypropylene body or EPDM seals.
