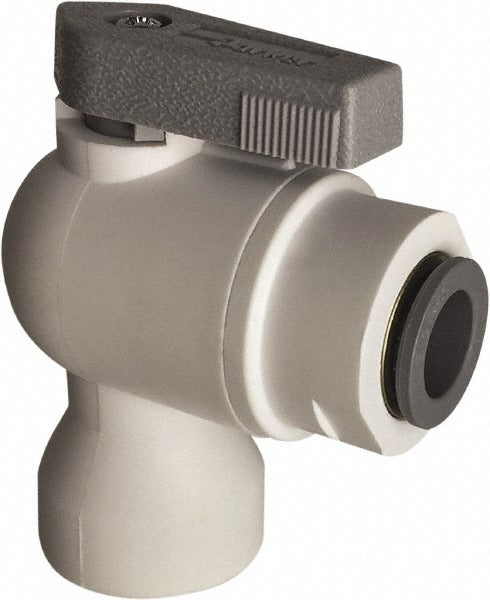

Parker LFPP6VFE2 Female Elbow Ball Valve 1/8 in

Product Description

The PARKER LFPP6VFE2 is a female elbow, bi-directional manual ball valve designed for 1/8 inch pipe applications requiring a full port flow path. Built with a polypropylene body and EPDM seals, this valve is rated for use in water and fluid systems where material compatibility and regulatory compliance matter. The wedge-style handle provides positive open and close indication. End connections are MNPT x Push-To-Connect, allowing fast field installation without soldering or threaded fittings on the push-connect side. Licensed plumbers and fluid system technicians are the primary installers.

This valve is suited for residential and light commercial plumbing, water treatment, filtration systems, and foodservice fluid lines where FDA, NSF-51, and NSF-61 compliance is required. The push-to-connect end simplifies installation in tight spaces typical of under-sink or appliance shutoff configurations. The full port design minimizes pressure drop across the valve, making it a practical choice for low-flow or pressure-sensitive circuits. The 3/8 inch tube outside diameter on the push-connect side is compatible with standard 3/8 inch OD tubing used in many water supply and filtration applications.

Key Features

• Full port design minimizes flow restriction and pressure drop
• MNPT x Push-To-Connect ends allow tool-free connection on one side
• Polypropylene body resists corrosion in water and mild chemical service
• EPDM seals provide reliable shutoff and broad fluid compatibility
• Wedge handle gives clear visual indication of valve position
• Meets FDA, NSF-51, and NSF-61 standards for potable water and food-contact applications

Compatibility

Designed for 1/8 inch pipe connections with a 3/8 inch OD push-to-connect tube end. Suitable for water supply, filtration, and foodservice fluid systems requiring NSF-61 and FDA-compliant shutoff valves.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and IPC guidelines. Shut off the water supply and relieve system pressure before installing or removing this valve. Ensure the push-to-connect tubing end is cut cleanly and fully seated before pressurizing the system. Do not exceed the rated operating conditions specified by the manufacturer.
