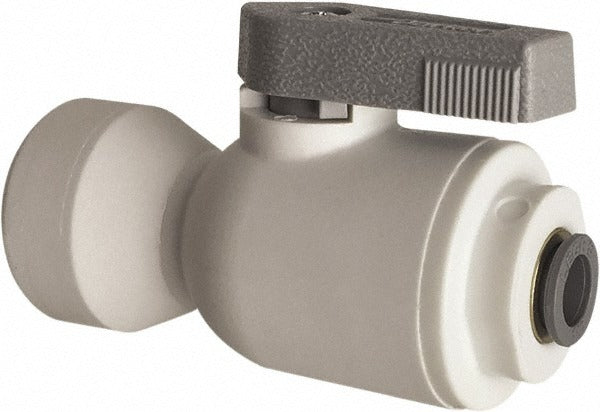

Parker LFPP6VFC6 Full Port Ball Valve 3/8 Inch Push-to-connect

Product Description

The PARKER LFPP6VFC6 is a full port, bidirectional manual ball valve designed for 3/8 inch pipe connections in plumbing and fluid handling systems. It features push-to-connect inlet ends combined with a female NPT (FNPT) outlet, allowing for tool-free tubing insertion on one side and threaded connection on the other. The polypropylene body and EPDM seals make this valve suitable for potable water and food-service-adjacent applications where corrosion resistance and compliance are required. The wedge handle provides positive open and closed indication. Rated to 150 psi working pressure (WOG), this valve is installed by licensed plumbers and mechanical contractors in residential and light commercial piping systems.

The LFPP6VFC6 is suited for residential and commercial plumbing installations where a compact, corrosion-resistant shutoff is needed on 3/8 inch tubing lines. Its push-to-connect end simplifies connection to compatible tubing without soldering or threading tools, while the FNPT end ties into standard threaded pipe networks. It is commonly used in water supply, filtration, and food equipment applications where NSF and FDA compliance is specified. The bidirectional design means flow direction does not need to be verified during installation, reducing installation errors in the field.

Key Features

• Full port ball valve design minimizes flow restriction through the valve body
• Bidirectional flow allows installation without regard to flow direction
• Push-to-connect x FNPT ends for fast, tool-free tubing connection on one side
• Polypropylene body resists corrosion in water and mild chemical service
• EPDM seals compatible with potable water and food-contact environments
• NSF-51 and NSF-61 certified, FDA compliant, and California Prop 65 listed

Compatibility

Designed for use with 3/8 inch OD tubing on the push-to-connect end and 3/8 inch female NPT threaded pipe on the outlet end. Suitable for potable water, filtration, and food equipment plumbing systems requiring NSF-51 and NSF-61 certified components.

Installation Notes

Installation should be performed by a licensed plumber or qualified mechanical contractor in accordance with applicable IPC or local plumbing codes. Shut off the water supply and depressurize the line before making any connections. On the push-to-connect end, ensure tubing is cut cleanly and squarely and inserted to full depth before pressurizing. Do not exceed the 150 psi rated working pressure.
