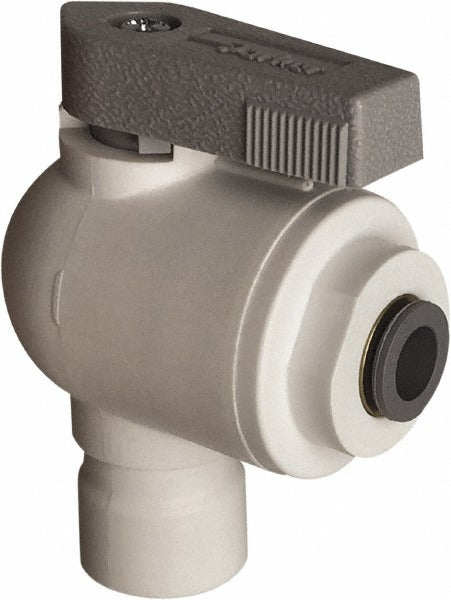

Parker LFPP6VEU6 Full Port Elbow Union Ball Valve

Product Description

The PARKER LFPP6VEU6 is a full-port, elbow union bi-directional manual ball valve designed for push-to-connect tubing systems. Built with a polypropylene body and EPDM seals, it handles bi-directional flow and connects to 3/8-inch outside diameter tubing on both ends. The wedge-style handle provides positive, quarter-turn shutoff with clear open and closed positions. It meets FDA, NSF-51, and NSF-61 standards, making it well-suited for potable water and food-contact applications. Licensed plumbers and water treatment technicians are the primary installers. Weighing 0.32 pounds, the valve fits in tight spaces where an inline valve would require extra clearance.

This valve is intended for use in residential and light commercial plumbing, water treatment, and food service equipment systems where a compact elbow fitting and full-bore flow path are required. The push-to-connect end connections on both ports allow fast, tool-free tube insertion, which reduces installation time in retrofit and new-construction scenarios alike. Its NSF-61 listing makes it acceptable for direct contact with drinking water systems under most local plumbing codes.

Key Features

• Full-port ball valve design maintains unrestricted flow through the valve body
• Bi-directional flow — no required inlet or outlet orientation
• Push-to-connect x push-to-connect ends accept 3/8-inch OD tubing without tools or fittings
• Polypropylene body resists corrosion in wet and chemically active environments
• EPDM seals provide reliable shutoff and long service life in potable water service
• Certified to FDA, NSF-51, and NSF-61 standards for food-contact and drinking water applications

Compatibility

Designed as an OEM-style replacement or new-installation valve for push-to-connect plumbing systems using 3/8-inch outside diameter tubing in potable water, water treatment, and food service equipment applications.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and applicable NSF requirements. Shut off the water supply and relieve system pressure before removing or installing the valve. Ensure tubing ends are cut square and deburred before inserting into push-to-connect ports to achieve a proper seal. Verify local code acceptance of polypropylene fittings for the intended service before installation.
