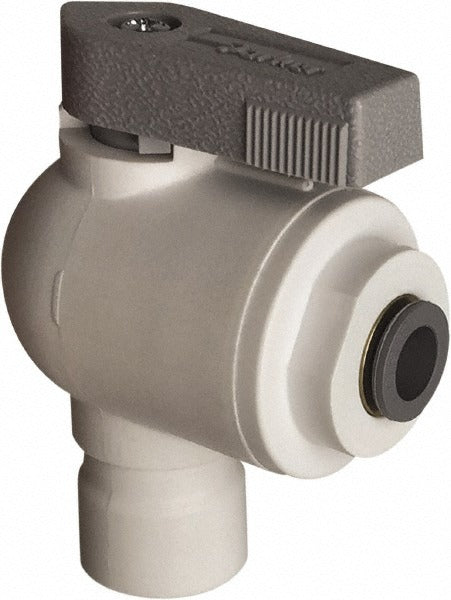

Parker LFPP6VEU4 Ball Valve 3/8 X 1/4 Inch Full Port

Product Description

The PARKER LFPP6VEU4 is an elbow union bi-directional manual ball valve designed for push-to-connect plumbing and fluid-handling applications. Built with a polypropylene body and EPDM seals, it handles up to 150 psi working pressure across a full-port flow path. The wedge handle allows quick quarter-turn shutoff in either flow direction, making it practical for tight routing changes where an inline valve will not fit. Licensed plumbers and mechanical contractors install this valve in potable water, food-service, and light commercial systems where NSF-61 and FDA compliance are required.

This valve suits residential and light commercial plumbing systems that require a directional change at the valve point without additional fittings. The 3/8 inch by 1/4 inch push-to-connect ends accept tubing without tools, reducing installation time in manifold assemblies, water-treatment equipment, and point-of-use filtration systems. Its California Prop 65 and NSF-51 certifications make it appropriate for applications with food-equipment contact water lines.

Key Features

• Bi-directional flow path allows installation in either flow direction without re-orientation
• Full-port design minimizes pressure drop across the valve body
• Push-to-connect x push-to-connect ends eliminate the need for threaded fittings or solvents at connection points
• Polypropylene body resists corrosion in potable water and light chemical service
• EPDM seals rated for 150 psi maximum working pressure
• NSF-51 and NSF-61 certified for food-equipment and potable water contact

Compatibility

Designed for push-to-connect tubing systems with 3/8 inch and 1/4 inch outside diameter tubing in potable water, filtration, and food-service fluid-handling applications where NSF-61 compliance is required.

Installation Notes

This valve is typically installed by a licensed plumber or journeyman pipefitter. Shut off the water supply and relieve system pressure before removal or installation of any valve. Verify that tubing outside diameter matches the push-to-connect end size before seating the tube. Local plumbing codes under the IPC or equivalent authority having jurisdiction should be consulted for approved materials and pressure ratings.
