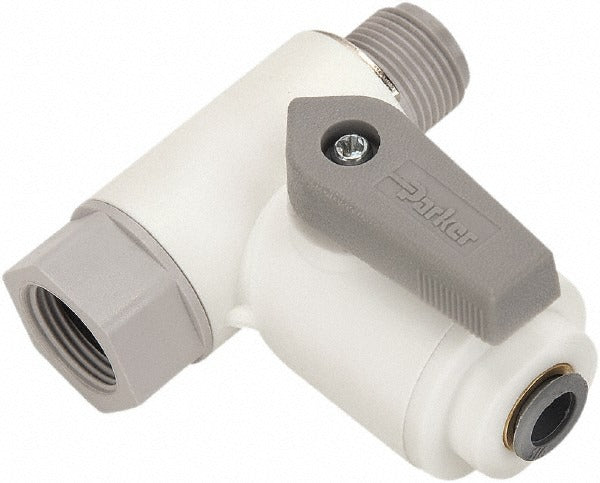

Parker LFPP6VAS8 Angle Stop Ball Valve 3/8x1/2 Full Port

Product Description

The PARKER LFPP6VAS8 is a full-port, angle stop, bi-directional manual ball valve designed for plumbing and water distribution applications where a reliable shutoff is required in a compact form factor. Built with a polypropylene body and EPDM seals, this valve handles potable water service and meets FDA, NSF-51, and NSF-61 standards. The wedge-style handle allows for quick quarter-turn operation. With a 3/8-inch tube outside diameter and a combination Push-to-Connect x MNPT x FNPT end connection, it integrates easily into mixed-connection plumbing assemblies. Licensed plumbers and water treatment technicians are the primary installers for this type of valve.

This valve is suited for residential and light commercial potable water systems, including water filtration lines, ice maker supply, and point-of-use water treatment installations. The full-port design minimizes flow restriction, making it a practical choice for applications where pressure drop must be kept low. The bi-directional flow capability adds flexibility during installation when flow direction is variable or not clearly marked at the service point.

Key Features

• Full-port ball valve design minimizes flow restriction through the valve body
• Bi-directional flow allows installation without regard to flow direction
• Push-to-Connect x MNPT x FNPT end connections support mixed plumbing configurations
• Polypropylene body construction suited for potable water service
• EPDM seal material provides reliable performance in water applications
• Meets FDA, NSF-51, and NSF-61 standards for drinking water contact

Compatibility

Designed as an OEM-style replacement or new-installation valve for potable water plumbing systems requiring a 3/8-inch Push-to-Connect inlet and 1/2-inch MNPT or FNPT threaded connections.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local codes and IPC guidelines. Shut off the water supply and relieve line pressure before removing or installing this valve. Ensure threaded connections are properly sealed with approved thread sealant or tape rated for potable water use. Do not overtighten push-to-connect fittings; follow the fitting manufacturer's insertion depth and tube preparation requirements.
