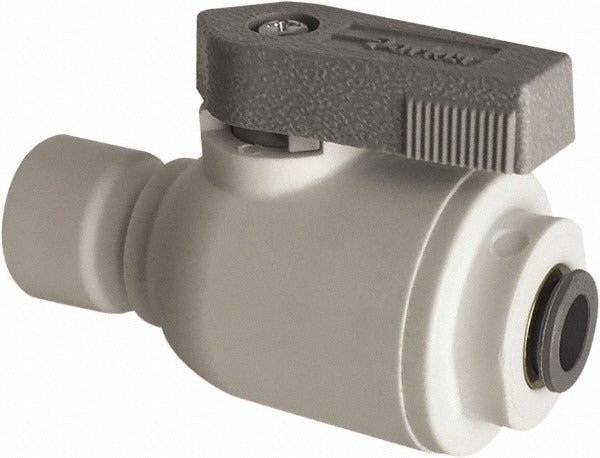

Parker LFPP4VUC4 Full Port Ball Valve 1/4 in Push-to-connect

Product Description

The PARKER LFPP4VUC4 is a full port, bi-directional manual ball valve designed for 1/4-inch pipe and tubing applications. Built with a polypropylene body and EPDM seals, it connects via push-to-connect ends on both sides and is operated by a wedge-style handle. Rated at 150 psi working pressure, this valve is suitable for systems requiring reliable flow shutoff without the need for tools at the connection point. It meets FDA, NSF-51, and NSF-61 standards, making it appropriate for potable water and food-contact fluid systems. Licensed plumbers and water treatment technicians are the primary installers of this fitting.

This valve is used in residential and light commercial plumbing, water treatment, filtration, and fluid distribution systems where a compact, push-to-connect shutoff is required. The union connector design allows the valve body to be removed from the line without cutting tubing, which simplifies servicing. The full port configuration minimizes pressure drop across the valve, making it well suited for low-flow or pressure-sensitive systems. Compatible tubing outside diameter is 1/4 inch.

Key Features

• Full port design minimizes flow restriction and pressure drop
• Bi-directional flow — no orientation requirement during installation
• Push-to-connect ends on both sides for tool-free tubing connection
• Union connector body allows in-line removal without cutting tubing
• Wedge handle provides clear open/closed visual indication
• NSF-51 and NSF-61 certified for potable water and food-contact applications
• California Proposition 65 compliant

Compatibility

Designed for use with 1/4-inch outside diameter tubing in push-to-connect plumbing and fluid systems. Suitable for potable water, filtration, and food-contact fluid lines meeting NSF-51 and NSF-61 installation requirements.

Installation Notes

Installation is performed by a licensed plumber or qualified water treatment technician in accordance with applicable local plumbing codes. Before servicing or replacing this valve, shut off upstream supply pressure and relieve any residual line pressure. Push-to-connect fittings require tubing to be cut cleanly and squarely for a proper seal — avoid angled or burred cuts. Verify tubing outside diameter and wall thickness are compatible with the fitting before insertion.
