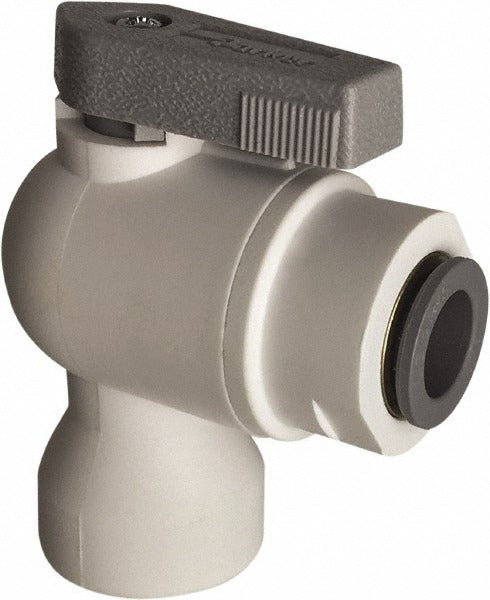

Parker LFPP4VFE4 Female Elbow Ball Valve 1/4 in Full Port

Product Description

The PARKER LFPP4VFE4 is a female elbow, bi-directional manual ball valve designed for 1/4-inch pipe connections in plumbing and fluid-handling systems. The valve features a full-port design, which minimizes flow restriction through the line. Push-to-connect on one end and FNPT on the other allow quick, tool-free tube insertion alongside standard threaded connections. The polypropylene body and EPDM seals make it well-suited for water and chemical service applications. Rated at 150 psi working pressure, this valve is installed by licensed plumbers and pipefitters in both residential and light commercial settings.

The LFPP4VFE4 is used in potable water systems, water treatment equipment, and fluid-distribution lines where a compact elbow configuration is required at a shutoff or isolation point. The wedge handle provides a positive open/close indication and secure grip during operation. Its NSF-51 and NSF-61 certifications make it appropriate for installations involving drinking water contact or equipment used in food-related environments. California Proposition 65 compliance is noted for applicable jurisdictions.

Key Features

• Full-port ball valve design for unrestricted flow through 1/4-inch lines
• Bi-directional flow capability for flexible installation orientation
• Push-to-connect inlet combined with FNPT outlet for mixed-connection scenarios
• Polypropylene body resists corrosion in water and mild chemical service
• EPDM seals provide durable, low-compression-set sealing
• NSF-51 and NSF-61 certified for potable water and food-equipment applications

Compatibility

Designed as an OEM-style replacement or new-installation valve for 1/4-inch push-to-connect and FNPT plumbing systems in residential and light commercial water treatment and fluid-handling applications.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and IPC guidelines. Shut off the water supply and relieve line pressure completely before removing an existing valve or making new connections. Ensure tube ends are cut cleanly and squarely before inserting into the push-to-connect fitting to achieve a proper seal. Do not exceed the rated 150 psi working pressure during system pressure tests.
