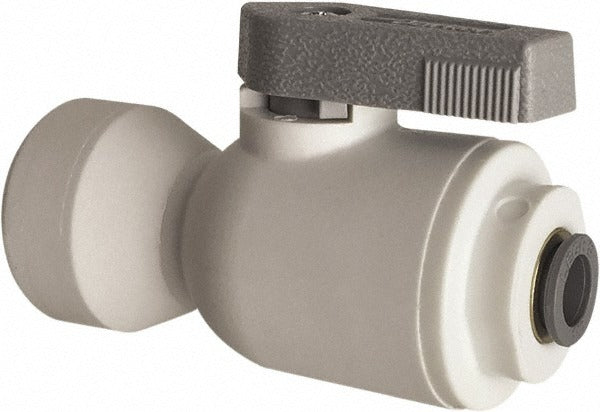

Parker LFPP4VFC2 Full Port Ball Valve 1/8 Inch Fnpt

Product Description

The PARKER LFPP4VFC2 is a bi-directional manual ball valve designed for fluid control applications in plumbing, HVAC, and food-service piping systems. Built with a polypropylene body and EPDM seals, this full-port valve delivers a 150 psi maximum working pressure rating. It features push-to-connect and female NPT (FNPT) end connections, allowing fast, tool-free installation on one end while threading into standard pipe fittings on the other. The wedge handle provides a positive open-close feel and clear visual indication of valve position. At 0.079 pounds, this compact valve suits tight-space installations where a reliable shutoff is required on 1/8-inch pipe lines.

This valve is suited for residential and light commercial plumbing and HVAC applications where a low-profile, full-port shutoff is needed on small-diameter lines. The bi-directional flow design eliminates the need to orient the valve during installation, reducing callback risk. NSF-51 and NSF-61 certifications make it appropriate for use in potable water and food-equipment piping systems. Licensed plumbers and HVAC technicians typically install this valve during new construction, retrofit, or equipment-service work on 1/8-inch pipe circuits.

Key Features

• Full-port design minimizes flow restriction across the valve
• Bi-directional flow — no specific inlet orientation required
• Push-to-connect x FNPT ends for fast, flexible installation
• Polypropylene body resists corrosion and chemical exposure
• EPDM seals provide reliable performance across a broad temperature range
• NSF-51 and NSF-61 certified for potable water and food-equipment use
• California Prop 65 and FDA compliant

Compatibility

Designed for use on 1/8-inch pipe systems with push-to-connect tubing having a 1/4-inch outside diameter and standard FNPT threaded connections. Suitable for potable water, food-service, and compatible fluid-handling systems meeting NSF-51 and NSF-61 requirements.

Installation Notes

Installation should be performed by a licensed plumber or qualified HVAC technician in accordance with applicable local codes and IPC guidelines. Shut off system pressure and depressurize the line before removing or installing the valve. Verify that push-to-connect tubing outside diameter is 1/4 inch and that threaded connections are clean and properly taped with PTFE thread sealant before make-up. Do not exceed the 150 psi maximum working pressure rating in service.
