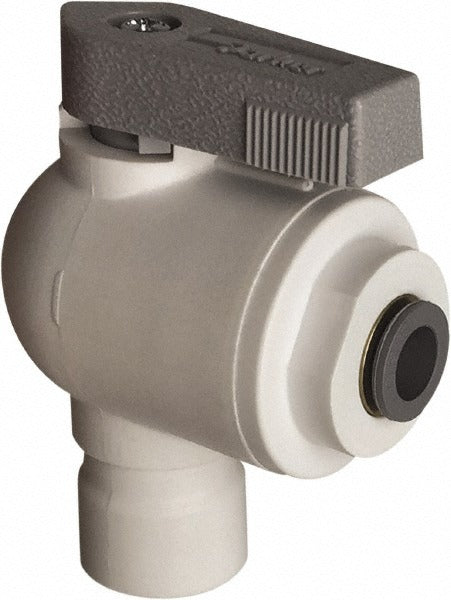

Parker LFPP4VEU6 Full Port Elbow Union Ball Valve

Product Description

The PARKER LFPP4VEU6 is a full port, elbow union bi-directional manual ball valve designed for push-to-connect plumbing applications. Built with a polypropylene body and EPDM seals, this valve handles bi-directional flow control at a 90-degree elbow configuration without requiring tools for tube insertion. The wedge-style handle provides a positive open/close indication, and the full port design minimizes pressure drop across the valve. Tube outside diameter connections measure 1/4 inch on one end and 3/8 inch on the other. It meets FDA, NSF-51, and NSF-61 standards, making it appropriate for potable water and food-contact fluid systems. Licensed plumbers and water treatment technicians are the primary installers of this fitting.

This valve is suited for residential and light commercial plumbing installations where an inline shutoff with a directional change is required in a single fitting. Common applications include reverse osmosis systems, water filtration lines, ice maker supply lines, and other low-pressure potable water circuits that use push-to-connect tubing. The push-to-connect ends accept standard OD tubing, allowing fast installation and easy service disconnection without soldering or threaded fittings. The elbow union design also simplifies access and removal during maintenance.

Key Features

• Full port ball valve minimizes flow restriction and pressure drop
• Bi-directional flow capability allows flexible installation orientation
• Push-to-connect on both ends accepts standard OD tubing without tools or fittings
• Polypropylene body resists corrosion in potable water and filtration environments
• EPDM seals provide reliable shutoff and long service life in water service
• NSF-51 and NSF-61 certified and FDA compliant for food-contact and potable water use

Compatibility

Designed as an OEM-style replacement or new-installation fitting for push-to-connect plumbing systems using 1/4 inch and 3/8 inch outside diameter tubing in potable water, filtration, and food-contact fluid applications meeting NSF-51, NSF-61, and FDA requirements.

Installation Notes

Installation is typically performed by a licensed plumber or water treatment technician. Shut off the water supply and relieve system pressure completely before installing or removing the valve. Ensure tubing is cut cleanly and squarely and that the outside diameter matches the specified connection sizes before insertion into the push-to-connect ends. Follow all applicable local plumbing codes and manufacturer torque or insertion-depth guidance referenced in the product installation sheet.
