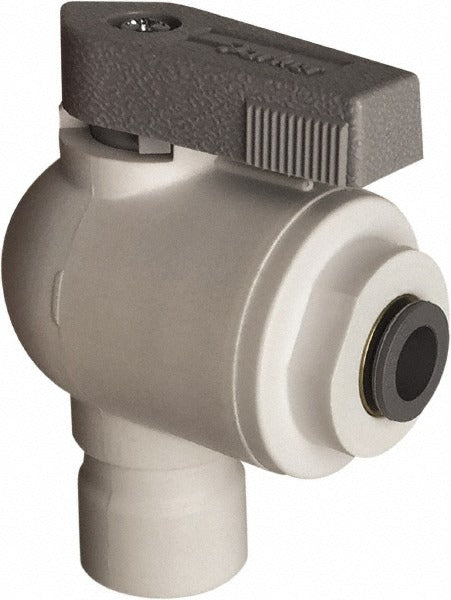

Parker LFPP4VEU4 Elbow Union Ball Valve 1/4 in Full Port

Product Description

The PARKER LFPP4VEU4 is a 1/4 inch elbow union bi-directional manual ball valve designed for full-port flow control in push-to-connect plumbing and fluid handling systems. Built with a polypropylene body and EPDM seals, this valve handles up to 150 psi (10 bar) working pressure. The elbow union configuration allows the valve to serve as both a directional fitting and an isolation point, reducing the number of components needed in a line. The wedge handle provides a positive open/close indication and is easy to operate in tight spaces. Licensed plumbers and fluid system technicians are the primary installers of this valve.

This valve is suited for residential and light commercial plumbing, water treatment, food service equipment, and fluid distribution applications where push-to-connect terminations are specified. The 1/4 inch tube outside diameter and full-port design minimize pressure drop across the valve. NSF-51 and NSF-61 certifications make it appropriate for potable water and food-contact fluid systems. California Proposition 65 compliance is noted for installations in that jurisdiction. The push-to-connect ends on both sides allow fast, tool-free tube insertion during assembly.

Key Features

• Full-port ball design maintains maximum flow with minimal restriction
• Push-to-connect x push-to-connect ends allow tool-free tube insertion and removal
• Polypropylene body resists corrosion in water and mild chemical service
• EPDM seals provide reliable sealing across a range of fluid temperatures
• NSF-51 and NSF-61 certified for potable water and food-contact applications
• Wedge handle gives clear visual indication of valve position

Compatibility

Designed for use with 1/4 inch outside diameter tubing in push-to-connect plumbing and fluid handling systems where NSF-certified, full-port isolation valves are required.

Installation Notes

Installation should be performed by a licensed plumber or qualified fluid system technician in accordance with applicable local plumbing codes and IPC guidelines. Shut off the water supply and depressurize the line completely before removing or installing the valve. Ensure tubing ends are cut square, deburred, and fully seated in the push-to-connect fittings before pressurizing. Verify all connections are leak-free at working pressure before returning the system to service.
