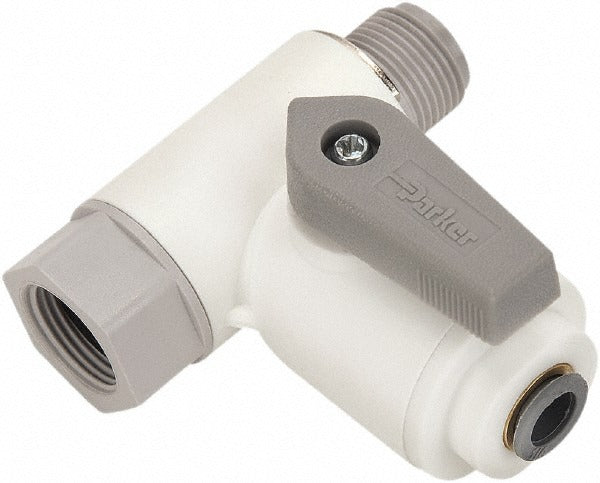

Parker LFPP4VAS6 Angle Stop Ball Valve 3/8 X 3/8 Inch

Product Description

The PARKER LFPP4VAS6 is a bi-directional angle stop manual ball valve designed for inline shutoff and flow control in plumbing and fluid distribution systems. Built with a full port design, it delivers unrestricted flow when open. The polypropylene body keeps weight low at 0.14 pounds while resisting corrosion in water service applications. End connections are Push-to-Connect on one side with male NPT and female NPT threading, making it adaptable to multiple pipe termination styles. The wedge-style handle provides positive tactile feedback and is sized for easy quarter-turn operation in tight spaces. Licensed plumbers and pipefitters are the typical installing trade.

This valve is suited for residential and light commercial water supply lines, filtration systems, and potable water distribution where a compact angle stop configuration is needed. The 3/8 x 3/8 inch pipe size fits common under-sink and appliance supply line configurations. The EPDM seal material maintains integrity across standard cold and warm water temperature ranges. Its NSF-51 and NSF-61 certifications confirm suitability for food-equipment and potable water contact applications. FDA compliance broadens its use to food-service plumbing installations.

Key Features

• Full port ball valve design allows unrestricted flow with no flow restriction at the valve body
• Tri-configuration end connections: Push-to-Connect, male NPT, and female NPT on a single valve body
• Polypropylene body construction resists corrosion and chemical attack in water service
• EPDM seals rated for potable water and food-contact fluid compatibility
• NSF-51, NSF-61, and FDA compliant for potable water and food-service plumbing systems
• Wedge handle enables confident quarter-turn actuation in confined installations

Compatibility

Designed for 3/8 inch pipe systems using Push-to-Connect, male NPT, or female NPT connections. Compatible with 1/4 inch outside diameter tubing on the push-to-connect port. Suitable for potable water and food-service fluid lines where NSF-61 and FDA compliance are required.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable IPC or local plumbing code requirements. Shut off the upstream water supply and relieve line pressure before removing or installing the valve. Ensure NPT threads are wrapped with appropriate thread seal tape before tightening to avoid cross-threading or leaks. Confirm push-to-connect tubing outside diameter is 1/4 inch before insertion and verify the tube is fully seated before pressurizing the line.
